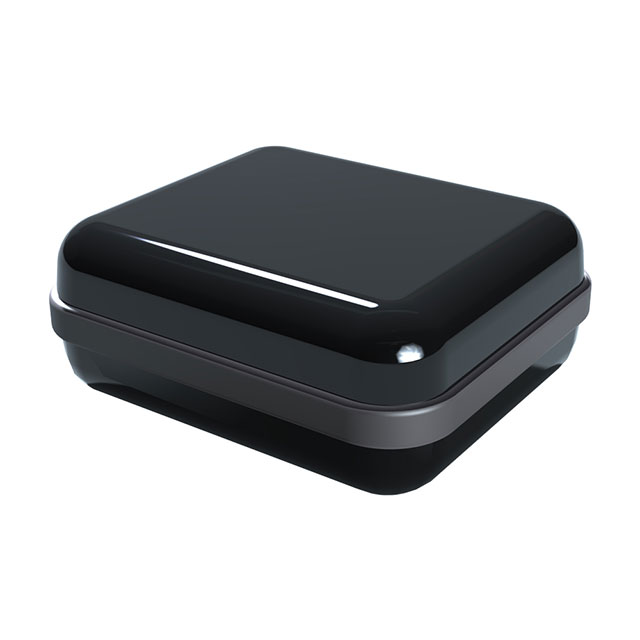

CX24ABKAGM

Active

Serpac

ENCLOSURE PLAS 1.68"L X 1.45"W

Search across all available documentation for this part.

Active

Serpac

ENCLOSURE PLAS 1.68"L X 1.45"W

Technical Specifications

Parameters and characteristics for this part

Specification	CX24ABKAGM

Area (L x W)	2.43 in²
Area (L x W)	15.7 cm²
Color	Gunmetal, Black
Container Type	Enclosure
Design	Cover Included, Hand Held
Height [z]	17.78 mm
Height [z]	0.7 in
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-2
Ratings	NEMA 4X, IP67, 13, 12
Size / Dimension [x]	42.67 mm
Size / Dimension [x]	1.68 "
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.83 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material	Material Flammability Rating	Height [z]	Height [z]	Thickness	Thickness	Area (L x W)	Area (L x W)	Design	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Container Type
Serpac CX24ABKAGM	Plastic Polycarbonate	UL94 V-2	17.78 mm	0.7 in	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Cover Included Hand Held	Black Gunmetal	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	Enclosure
Serpac CX24ABKANO	Plastic Polycarbonate	UL94 V-2	17.78 mm	0.7 in	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Cover Included Hand Held	Black Neon Orange	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	Enclosure
Serpac CX24ABKAYL	Plastic Polycarbonate	UL94 V-2	17.78 mm	0.7 in	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Cover Included Hand Held		1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	Enclosure
Serpac CX24ABKAOR	Plastic Polycarbonate	UL94 V-2	17.78 mm	0.7 in	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Cover Included Hand Held	Black Orange	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	Enclosure
Serpac CX24ABKABK	Plastic Polycarbonate	UL94 V-2	17.78 mm	0.7 in	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Cover Included Hand Held	Black	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	Enclosure
Serpac CX24ABKANG	Plastic Polycarbonate	UL94 V-2	17.78 mm	0.7 in	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Cover Included Hand Held	Black Neon Green	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	Enclosure
Serpac CX24ABKABL	Plastic Polycarbonate	UL94 V-2	17.78 mm	0.7 in	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Cover Included Hand Held	Black Blue	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	Enclosure

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.70

General part information

Enclosure Plastic, Polycarbonate Black, Gunmetal Hand Held, Cover Included 1.680" L x 1.450" W (42.67mm x 36.83mm) X 0.700" (17.78mm)

Technical documentation and resources

No documents available
