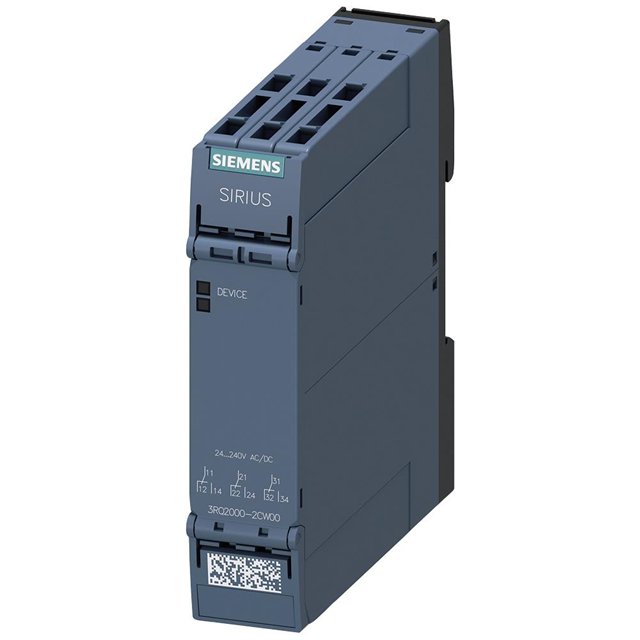

3RQ20002CW00

Active

Siemens

COUPLING RELAY IM

Search across all available documentation for this part.

Active

Siemens

COUPLING RELAY IM

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Rating (Current)	Contact Material	Switching Voltage [Max]	Termination Style	Features	Contact Form	Release Time	Coil Voltage [Min]	Coil Voltage [Max]	Operate Time
Siemens 3RQ20001BW00	-40 °C	60 °C	Chassis Mount DIN Rail	5 A	Silver Tin Oxide (AgSnO)	300 VAC	Screw Terminal	Auxiliary Contacts	DPDT (2 Form C)	100 ms	24 VAC	240 VAC	10 ms
Siemens 3RQ20002CW00	-40 °C	60 °C	Chassis Mount DIN Rail	5 A	Silver Tin Oxide (AgSnO)	300 VAC	Spring Terminal	Auxiliary Contacts	3PDT (3 Form C)	100 ms	24 VAC	240 VAC	10 ms
Siemens 3RQ20002AW00	-40 °C	60 °C	Chassis Mount DIN Rail	5 A	Silver Tin Oxide (AgSnO)	300 VAC	Spring Terminal	Auxiliary Contacts	SPDT (1 Form C)	100 ms	24 VAC	240 VAC	10 ms
Siemens 3RQ20002CW01	-40 °C	60 °C	Chassis Mount DIN Rail	5 A	Silver Nickel (AgNi)	300 VAC	Spring Terminal	Auxiliary Contacts	3PDT (3 Form C)	100 ms	24 VAC	240 VAC	10 ms
Siemens 3RQ20002BW00	-40 °C	60 °C	Chassis Mount DIN Rail	5 A	Silver Tin Oxide (AgSnO)	300 VAC	Spring Terminal	Auxiliary Contacts	DPDT (2 Form C)	100 ms	24 VAC	240 VAC	10 ms
Siemens 3RQ20001CW00	-40 °C	60 °C	Chassis Mount DIN Rail	5 A	Silver Tin Oxide (AgSnO)	300 VAC	Screw Terminal	Auxiliary Contacts	3PDT (3 Form C)	100 ms	24 VAC	240 VAC	10 ms
Siemens 3RQ20001CW01	-40 °C	60 °C	Chassis Mount DIN Rail	5 A	Silver Nickel (AgNi)	300 VAC	Screw Terminal	Auxiliary Contacts	3PDT (3 Form C)	100 ms	24 VAC	240 VAC	10 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.08

General part information

COUPLING RELAY IM

Technical documentation and resources
