5053-36-0

Obsolete

Pomona Electronics

TEST LEAD, MICROGRABBER, HOOK CLIP TO 4MM BANANA PLUG, BLACK, 150 VRMS, 3 A, 914 MM

Find alt

Alpha

5053-36-0

Obsolete

Pomona Electronics

TEST LEAD, MICROGRABBER, HOOK CLIP TO 4MM BANANA PLUG, BLACK, 150 VRMS, 3 A, 914 MM

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

5053 Series

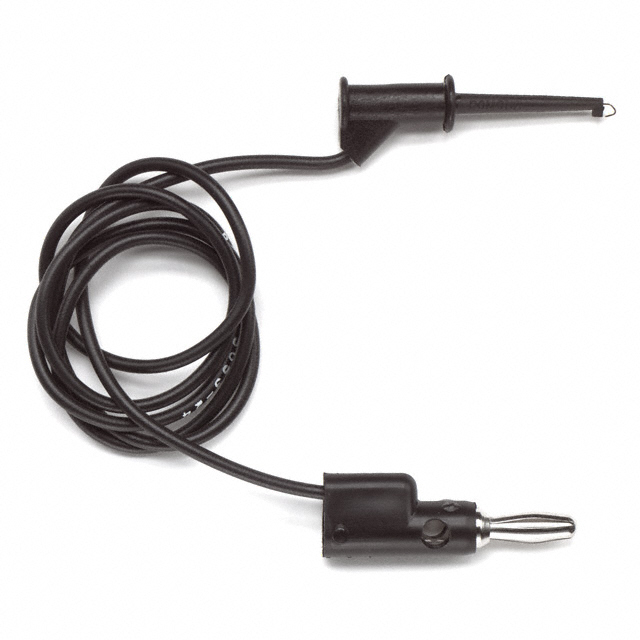

The 5053-36-0 is a Test Lead with Micrograbber® test clip to stacking banana plug. Banana Plug is cross stackable and vertical stackable. Ideal for connecting test equipment to small circuit board components.

Technical Specifications

Parameters and characteristics for this part

Specification	5053-36-0

1st Connector	Stackable, Single, Banana Plug
2nd Connector	Micro Hook
Cable Length	914.4 mm
Configuration	Hook, Banana to Grabber
Contents	Black
Current Rating	3 A
Lead Quantity	1
Material - Insulation	PVC, Poly-Vinyl Chloride
Stacking Method	Front, Multi-Stacking, Vertical
Type	Patch Cord
Voltage - Rated	150 VAC
Voltage - Rated (Type)	DC
Voltage - Rated Configuration	DC
Wire Gauge	20 AWG

5053 Series

Part	2nd Connector	Material - Insulation	Configuration	Cable Length	Wire Gauge	Stacking Method	Voltage - Rated (Type)	Voltage - Rated Configuration	Voltage - Rated	Current Rating	Lead Quantity	Contents	Type	1st Connector
Pomona Electronics 5053-36-2	Micro Hook	Poly-Vinyl Chloride PVC	Banana to Grabber Hook	914.4 mm	20 AWG	Front Multi-Stacking Vertical	DC	DC	150 VAC	3 A	1	Red	Patch Cord	Banana Plug Single Stackable
Pomona Electronics 5053-36-0	Micro Hook	Poly-Vinyl Chloride PVC	Banana to Grabber Hook	914.4 mm	20 AWG	Front Multi-Stacking Vertical	DC	DC	150 VAC	3 A	1	Black	Patch Cord	Banana Plug Single Stackable
Pomona Electronics 5053-48-2	Micro Hook	Poly-Vinyl Chloride PVC	Banana to Grabber Hook	48 in	20 AWG	Front Multi-Stacking Vertical	DC	DC	150 VAC	3 A	1	Red	Patch Cord	Banana Plug Single Stackable
Pomona Electronics 5053-48-0	Micro Hook	Poly-Vinyl Chloride PVC	Banana to Grabber Hook	48 in	20 AWG	Front Multi-Stacking Vertical	DC	DC	150 VAC	3 A	1	Black	Patch Cord	Banana Plug Single Stackable
Pomona Electronics 5053-24-0	Micro Hook	Poly-Vinyl Chloride PVC	Banana to Grabber Hook	24 in	20 AWG	Front Multi-Stacking Vertical	DC	DC	150 VAC	3 A	1	Black	Patch Cord	Banana Plug Single Stackable
Pomona Electronics 5053-24-2	Micro Hook	Poly-Vinyl Chloride PVC	Banana to Grabber Hook	24 in	20 AWG	Front Multi-Stacking Vertical	DC	DC	150 VAC	3 A	1	Red	Patch Cord	Banana Plug Single Stackable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EOL Notices EN

Technical Data Sheet EN

5053-36-0 | Datasheet
