Q-2002V0003001M

Active

Amphenol Custom Cable

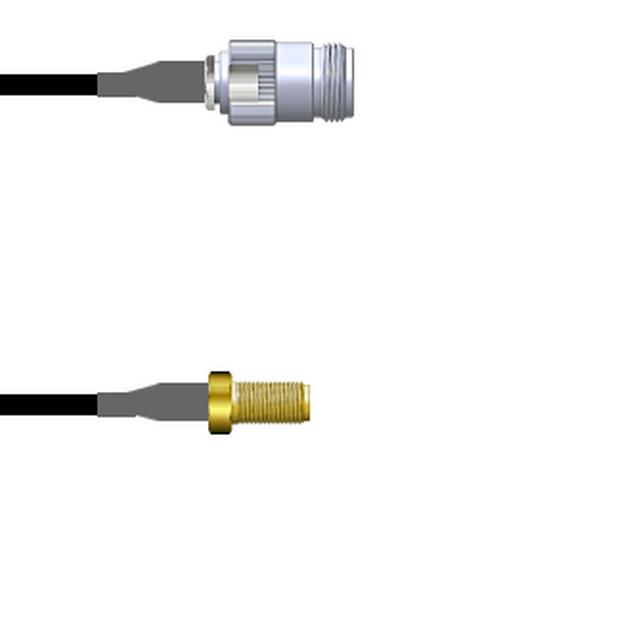

CBL ASSY SMA-NTYPE JCK-JCK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2002V0003001M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JCK-JCK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2002V0003001M

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2002V0 Series

Part	2nd Contact Gender	Features	1st Connector Mounting Type	1st Contact Gender	Color	Cable Type	1st Connector	Length	Length	Length	Style	2nd Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	2nd Connector
Amphenol Custom Cable Q-2002V00032.5M	Female	Shielded	Free Hanging (In-Line)	Female	Black	RG-174	SMA Jack	8.2 '	98.4 in	2.5 m	SMA to N-Type	Free Hanging (In-Line)	50 Ohms	11 GHz	N-Type Jack
Amphenol Custom Cable Q-2002V0005024i	Female	Shielded	Free Hanging (In-Line)	Female	Copper	RG-316	SMA Jack		24 "	609.6 mm	SMA to N-Type	Free Hanging (In-Line)	50 Ohms	11 GHz	N-Type Jack
Amphenol Custom Cable Q-2002V00051.5M	Female	Shielded	Free Hanging (In-Line)	Female	Copper	RG-316	SMA Jack	4.9 ft	59.1 in	1.5 m	SMA to N-Type	Free Hanging (In-Line)	50 Ohms	11 GHz	N-Type Jack
Amphenol Custom Cable Q-2002V0005002M	Female	Shielded	Free Hanging (In-Line)	Female	Copper	RG-316	SMA Jack	6.6 ft	78.7 in	2 m	SMA to N-Type	Free Hanging (In-Line)	50 Ohms	11 GHz	N-Type Jack
Amphenol Custom Cable Q-2002V0005036i	Female	Shielded	Free Hanging (In-Line)	Female	Copper	RG-316	SMA Jack		36 in	91.44 cm	SMA to N-Type	Free Hanging (In-Line)	50 Ohms	11 GHz	N-Type Jack
Amphenol Custom Cable Q-2002V0003084i	Female	Shielded	Free Hanging (In-Line)	Female	Black	RG-174	SMA Jack	7 ft	84 in	2.1 m	SMA to N-Type	Free Hanging (In-Line)	50 Ohms	11 GHz	N-Type Jack
Amphenol Custom Cable Q-2002V0003001M	Female	Shielded	Free Hanging (In-Line)	Female	Black	RG-174	SMA Jack	3.3 ft	39.4 in	1 m	SMA to N-Type	Free Hanging (In-Line)	50 Ohms	11 GHz	N-Type Jack
Amphenol Custom Cable Q-2002V0003024i	Female	Shielded	Free Hanging (In-Line)	Female	Black	RG-174	SMA Jack		24 "	609.6 mm	SMA to N-Type	Free Hanging (In-Line)	50 Ohms	11 GHz	N-Type Jack
Amphenol Custom Cable Q-2002V0003003i	Female	Shielded	Free Hanging (In-Line)	Female	Black	RG-174	SMA Jack		3 in	76.2 mm	SMA to N-Type	Free Hanging (In-Line)	50 Ohms	11 GHz	N-Type Jack
Amphenol Custom Cable Q-2002V0005006i	Female	Shielded	Free Hanging (In-Line)	Female	Copper	RG-316	SMA Jack		6 in	152.4 mm	SMA to N-Type	Free Hanging (In-Line)	50 Ohms	11 GHz	N-Type Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 66.51
		25	$ 65.21
		50	$ 63.91
		100	$ 62.62
		250	$ 61.32

Description

General part information

Q-2002V0 Series

Cable Assembly Coaxial SMA to N-Type RG-174 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
