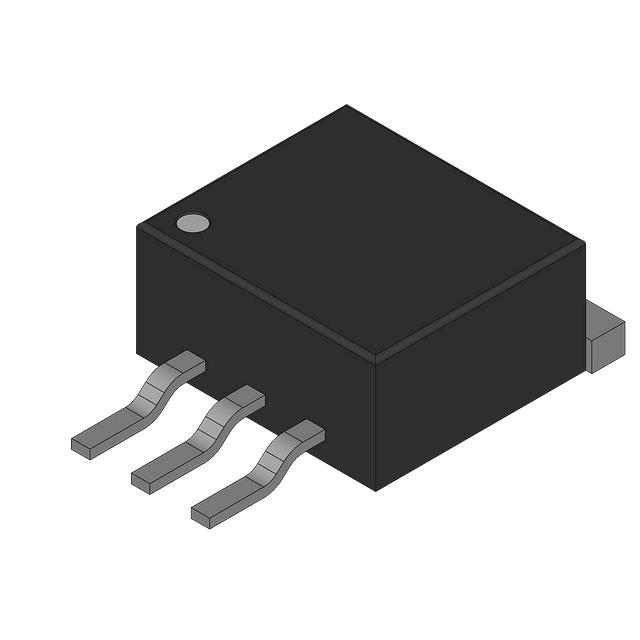

LM2936DTX-3.3

Active

National Semiconductor

IC REG LINEAR FIXED POS LDO REG

Search across all available documentation for this part.

Active

National Semiconductor

IC REG LINEAR FIXED POS LDO REG

Technical Specifications

Parameters and characteristics for this part

Specification	LM2936DTX-3.3

Current - Output	50 mA
Current - Quiescent (Iq)	15 µA
Current - Supply (Max) [Max]	2.5 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Protection Features	Reverse Polarity, Over Temperature, Short Circuit
PSRR	60 dB
Supplier Device Package	TO-252-3
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.4 V

Part	Current - Quiescent (Iq)	Number of Regulators	Operating Temperature [Min]	Operating Temperature [Max]	Protection Features	Current - Output	Mounting Type	Voltage - Output (Min/Fixed)	Output Type	Voltage Dropout (Max) [Max]	PSRR	Current - Supply (Max) [Max]	Supplier Device Package	Package / Case	Output Configuration	Package / Case [y]	Package / Case [x]
National Semiconductor LM2936DTX-3.3	15 µA	1	-40 °C	125 ¯C	Over Temperature Reverse Polarity Short Circuit	50 mA	Surface Mount	3.3 V	1.81 mOhm	0.4 V	60 dB	2.5 mA	TO-252-3	DPAK (2 Leads + Tab) SC-63 TO-252-3	Positive
National Semiconductor LM2936MPX-3.0/NOPB	15 µA	1	-40 °C	125 ¯C	Over Temperature Reverse Polarity Short Circuit	50 mA	Surface Mount		1.81 mOhm	0.4 V	60 dB	2.5 mA	SOT-223-4	TO-261-4 TO-261AA	Positive
National Semiconductor LM2936CM-5.0	9 µA	1	-40 °C	125 ¯C	Over Temperature Reverse Polarity Short Circuit	50 mA	Surface Mount	5 V	1.81 mOhm	0.4 V	60 dB	2.5 mA	8-SOIC	8-SOIC	Positive	3.9 mm	0.154 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	290	$ 1.04

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 50mA TO-252-3
