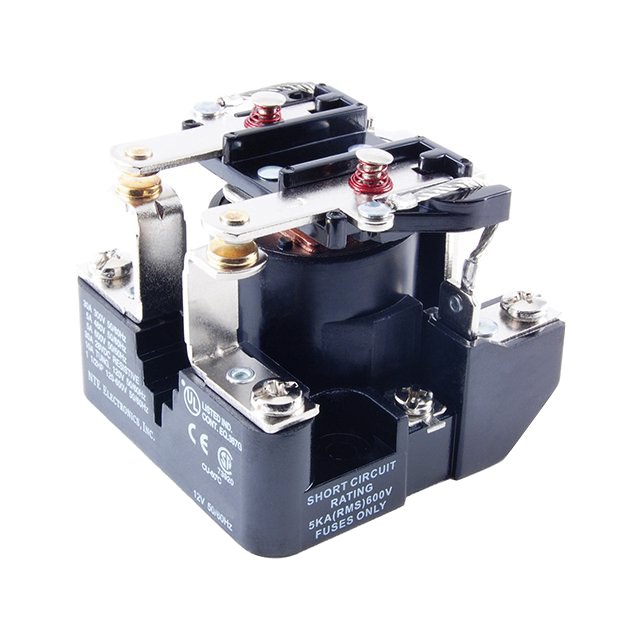

R04-3A30-12
ActiveNTE Electronics, Inc
RELAY GEN PURPOSE SPST 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
R04-3A30-12
ActiveNTE Electronics, Inc
RELAY GEN PURPOSE SPST 30A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R04-3A30-12 |
|---|---|
| Coil Voltage | 12 VAC/DC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Operate Time | 40 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -30 ░C |
| Relay Type | General Purpose |
| Release Time | 30 ms |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
R04-3A Series
General Purpose Relay SPST-NO (1 Form A) 12VAC Coil
Documents
Technical documentation and resources
No documents available
