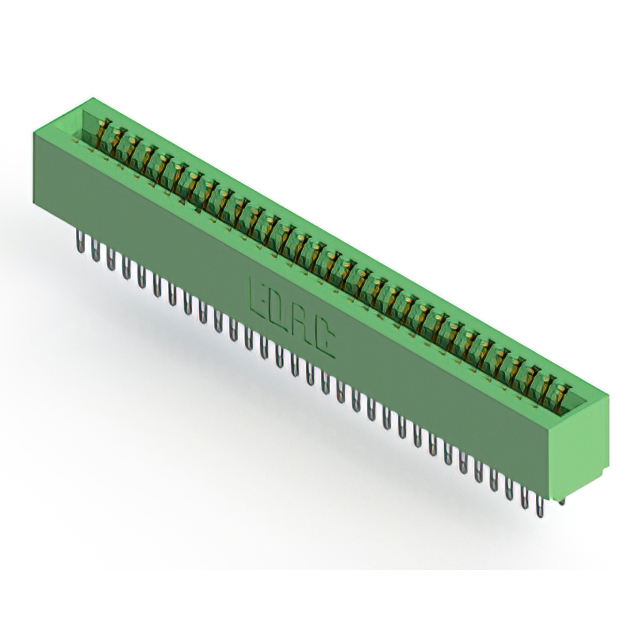

341-062-500-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 62POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCard Edge Brochure Datasheet +1

341-062-500-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 62POS 0.100

Deep-Dive with AI

DocumentsCard Edge Brochure Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-062-500-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	62
Number of Positions/Bay/Row [custom]	31
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

341-062 Series

Part	Contact Finish	Termination Rows	Pitch [x]	Pitch [x]	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Color	Number of Positions/Bay/Row [custom]	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Number of Positions	Contact Type	Number of Rows	Termination
EDAC Inc. 341-062-555-204	Gold	2	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Copper Alloy	Green	31	Card Extender	Through Hole	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Dual	62	Semi Bellows	2	Solder Eyelet(s)
EDAC Inc. 341-062-524-204	Gold	2	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Copper Alloy	Green	31		Through Hole	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Dual	62	Semi Bellows	2	Solder
EDAC Inc. 341-062-560-207	Gold	2	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Copper Alloy	Green	31	Card Extender	Board Edge Straddle Mount	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge		Flush Mount M3 Threaded Insert Top Opening		Dual	62	Semi Bellows	2	Solder
EDAC Inc. 341-062-500-201	Gold	2	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Copper Alloy	Green	31		Through Hole	-40 °C	105 ░C	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge				Dual	62	Semi Bellows	2	Solder Eyelet(s)
EDAC Inc. 341-062-521-207	Gold	2	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Copper Alloy	Green	31		Through Hole	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge		Flush Mount M3 Threaded Insert Top Opening		Dual	62	Semi Bellows	2	Solder
EDAC Inc. 341-062-520-201	Gold	2	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Copper Alloy	Green	31		Through Hole	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge				Dual	62	Semi Bellows	2	Solder
EDAC Inc. 341-062-500-204	Gold	2	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Copper Alloy	Green	31		Through Hole	-40 °C	105 ░C	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Dual	62	Semi Bellows	2	Solder Eyelet(s)
EDAC Inc. 341-062-500-203	Gold	2	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Copper Alloy	Green	31		Through Hole	-40 °C	105 ░C	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Dual	62	Semi Bellows	2	Solder Eyelet(s)
EDAC Inc. 341-062-521-201	Gold	2	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Copper Alloy	Green	31		Through Hole	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge				Dual	62	Semi Bellows	2	Solder
EDAC Inc. 341-062-560-204	Gold	2	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Copper Alloy	Green	31	Card Extender	Through Hole	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Dual	62	Semi Bellows	2	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.93

Description

General part information

341-062 Series

62 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
