TB1-2E-AC-6

Active

Switch Components

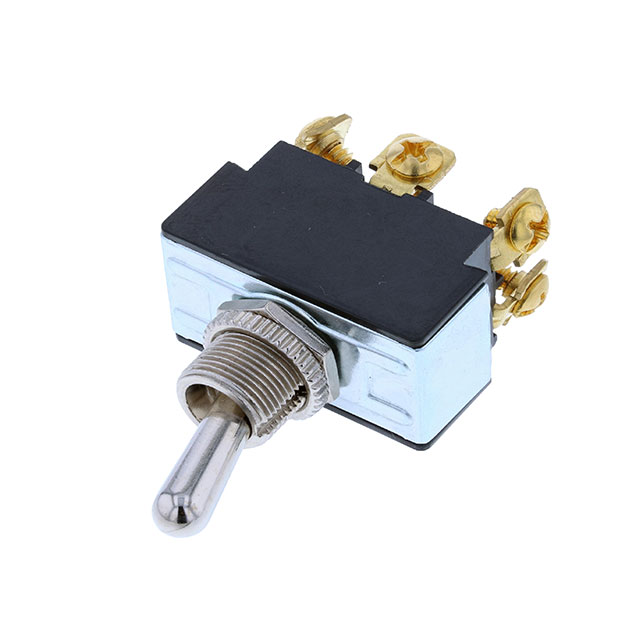

SWITCH TOGGLE DPDT 10A 250V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE DPDT 10A 250V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DPDT Panel Mount

Technical documentation and resources

Specification	TB1-2E-AC-6	TB1-2E Series

Actuator Length [x]	16.5 mm	16.5 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	10 A	10 - 21 A
Electrical Life	-	6000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm	12 - 12.2 mm
Switch Function	On-Mom	On-Mom
Termination Style	Screw Terminal	Screw Terminal, Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V	125 - 250 V
Voltage Rating - DC	-	14 V

Part	Termination Style	Current Rating (Amps)	Illumination	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Bushing Thread	Voltage Rating - AC	Actuator Type	Circuit	Switch Function	Electrical Life	Voltage Rating - DC
Switch Components TB1-2E-AC-6	Screw Terminal	10 A	Non-Illuminated	16.5 mm	12.2 mm	15/32-32	250 V	Standard Round	DPDT	On-Mom
Switch Components TB1-2E-DC-6	Screw Terminal	20 A, 21 A	Non-Illuminated	16.5 mm	12 mm	15/32-32	125 V	Standard Round	DPDT	On-Mom	6000 Cycles	14 V
Switch Components TB1-2E-DC-1	Quick Connect - 0.250" (6.3mm)	20 A, 21 A	Non-Illuminated	16.5 mm	12 mm	15/32-32	125 V	Standard Round	DPDT	On-Mom	6000 Cycles	14 V
