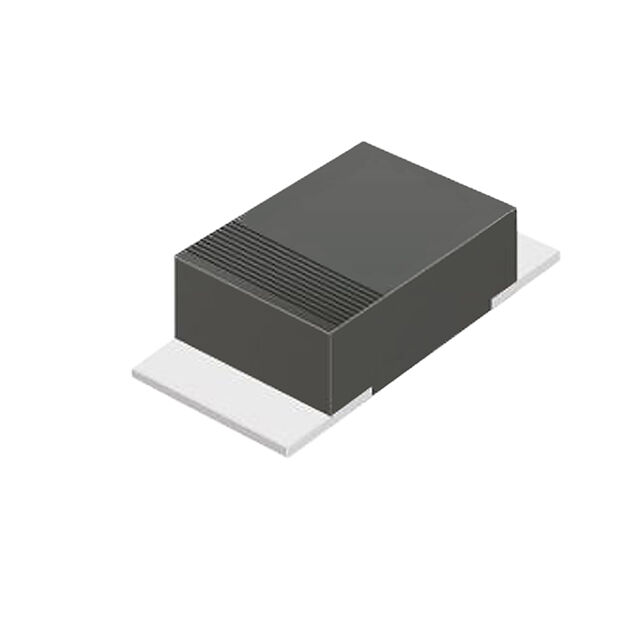

ACGRKM4004-HF

Active

Comchip Technology

DIODE 400V 1A 2-PIN SOD-123F T/R AUTOMOTIVE AEC-Q101

Search across all available documentation for this part.

Active

Comchip Technology

DIODE 400V 1A 2-PIN SOD-123F T/R AUTOMOTIVE AEC-Q101

Technical Specifications

Parameters and characteristics for this part

Specification	ACGRKM4004-HF

Capacitance @ Vr, F	15 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123T
Qualification	AEC-Q101
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	KM/SOD-123F
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.1 V

DIODE 400V 1A 2-PIN SOD-123F T/R AUTOMOTIVE AEC-Q101

Part	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Package / Case	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Grade	Qualification	Speed	Speed	Mounting Type	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Technology
Comchip Technology ACGRKM4004-HF	1.1 V	1 A	SOD-123T	KM/SOD-123F	400 V	Automotive	AEC-Q101	Standard Recovery >500ns	200 mA	Surface Mount	5 µA	150 °C	-55 °C	15 pF	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 400 V 1A Surface Mount KM/SOD-123F
