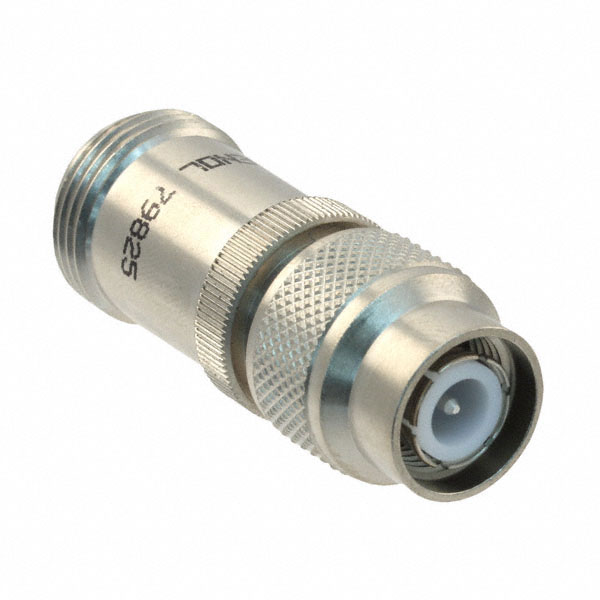

Specification	000-79825

Adapter Series	N to TNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	TNC Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	11 GHz
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

000-79 Series

Part	Center Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Dielectric Material	Body Finish	Impedance	Style	Center Contact Plating	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Fastening Type	Mounting Type	Center Gender	Adapter Series	Adapter Type	Convert From (Adapter End)	Conversion Type	Frequency - Max	Includes Total Count	Includes	Mounting Feature	Impedance	Mating Cycles	Convert To (Adapter End)	Features	Housing Color	Contact Termination	Connector Style	Cable Group	Connector Type	Shield Termination	Number of Ports	Ingress Protection	Insertion Loss	Voltage Rating

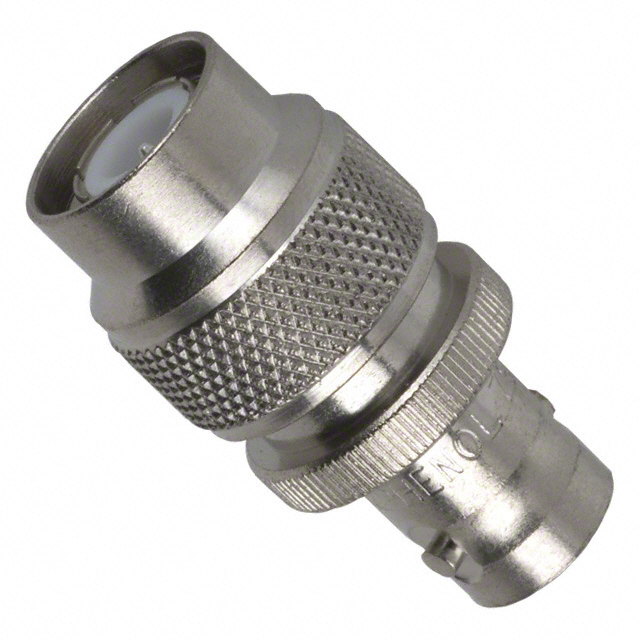

McGill Microwave Systems 000-79675	Beryllium Copper	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	50 Ohm	Straight	Silver	Female Socket	BNC Jack	Bayonet Lock Threaded	Free Hanging (In-Line)	Female Male	BNC to TNC	Plug to Jack	Male Pin TNC Plug	Between Series	4 GHz

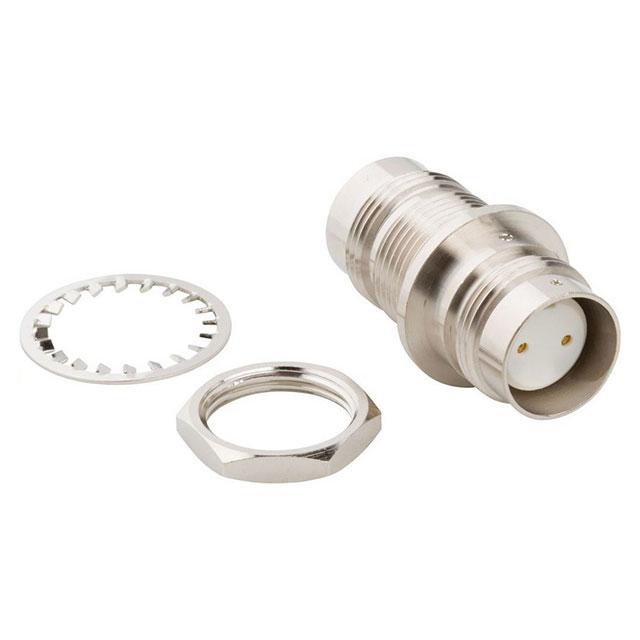

McGill Microwave Systems 000-7925-RFX		-65 °C	165 °C	Brass		Nickel		Straight		Female Socket	Twinaxial Jack	Threaded	Panel Mount	Female	Twinaxial to Twinaxial	Jack to Jack	Female Socket Twinaxial Jack	Same Series	500 MHz	3 pcs	Connector Lockwasher Nut	Bulkhead	Non-Constant
McGill Microwave Systems 000-79125	Beryllium Copper	-40 °C	85 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	50 Ohm	Right Angle	Silver	Male Pin	TNC Plug	Threaded	Free Hanging (In-Line) Right Angle	Female Male	TNC to TNC	Plug to Jack	Female Socket TNC Jack	Same Series	11 GHz					500 cycles
McGill Microwave Systems 000-79825	Beryllium Copper	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	50 Ohm	Straight	Silver	Male Pin	TNC Plug	Threaded	Free Hanging (In-Line)	Female Male	N to TNC	Plug to Jack	Female Socket N Jack	Between Series	11 GHz
McGill Microwave Systems 000-79125-RFX	Brass Phosphor Bronze	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	50 Ohm	Right Angle	Gold			Threaded	Free Hanging (In-Line) Right Angle	Female Male	TNC to TNC	Plug to Jack	Male Pin TNC Plug	Same Series	11 GHz					500 cycles	Female Socket TNC Jack

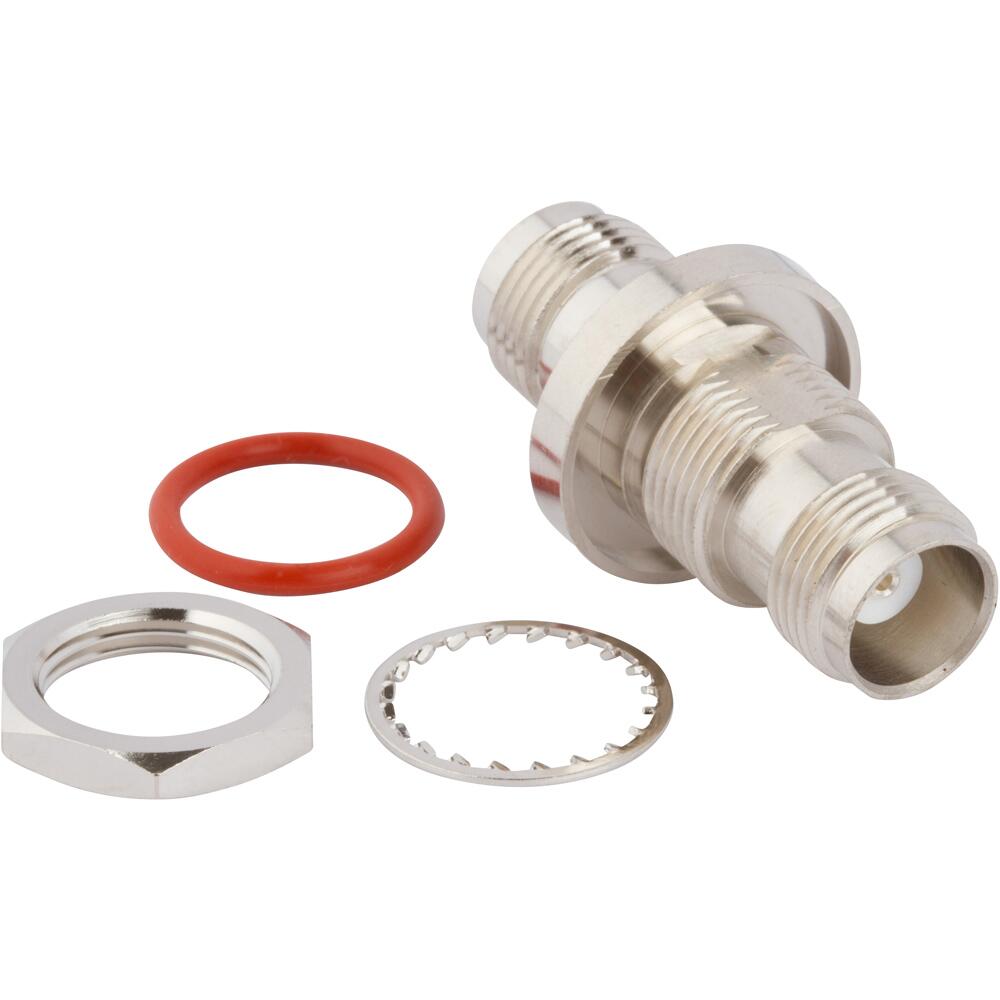

McGill Microwave Systems 000-79100	Beryllium Copper	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	50 Ohm	Straight	Silver			Threaded	Panel Mount	Female	TNC to TNC	Jack to Jack	Female Socket TNC Jack	Same Series	11 GHz	3 pcs	Connector Lockwasher Nut	Bulkhead		500 cycles	Female Socket TNC Jack	Hermetically Sealed
McGill Microwave Systems 000-79075	Beryllium Copper	-40 °C	85 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	50 Ohm		Silver			Threaded	Free Hanging (In-Line) Right Angle						11 GHz	5 pcs	Braid Clamp Clamp Connector Contact Gasket			500 cycles			Silver	Solder	TNC	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Male Pin Plug	Clamp	1	Weatherproof	0.18 dB	500 V
McGill Microwave Systems 000-79875	Brass	-40 °C	85 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	50 Ohm		Silver			Threaded	Free Hanging (In-Line)						4 GHz	6 pcs	Braid Clamp Clamp Connector Contact Gasket Washer			500 cycles			Silver	Solder	TNC	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Male Pin Plug	Clamp	1	Weatherproof	0.18 dB	500 V
