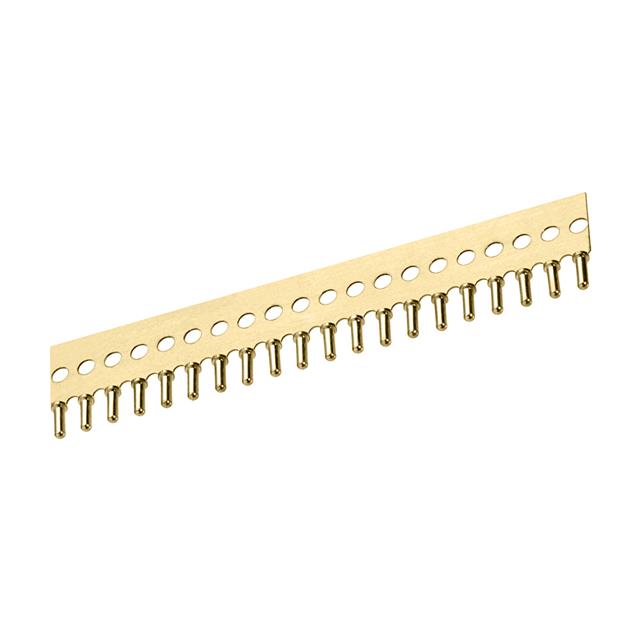

Specification	D01-9902005

Accepts Pin Diameter (Max)	0.02 in
Accepts Pin Diameter (Min)	0.016 in
Contact Finish	Gold
Contact Finish Thickness	3.94 µin
Contact Material	Beryllium Copper
Features	Strip of 20
Flange Diameter	0.057 in
Insertion Force (Maximum)	6 N
Insertion Force (Minimum)	2 N
Length - Overall	0.142 in
Mounting Hole Diameter (Max)	0.043 in
Mounting Hole Diameter (Min)	0.039 in
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-55 °C
Pin Hole Diameter	0.043 in
Socket Depth	0.124 in
Tail Type	No Tail
Termination	Solder

D01-990 Series

Part	Insertion Force (Minimum)	Insertion Force (Maximum)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Hole Diameter (Max)	Mounting Hole Diameter (Min)	Contact Finish Thickness	Flange Diameter	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Socket Depth	Length - Overall	Contact Material	Contact Finish	Pin Hole Diameter	Termination	Tail Type	Features
Harwin Inc. D01-9901301	2 N	6 N	-55 °C	100 °C	0.043 in	0.039 in	3.94 µin	0.057 in	0.016 in	0.02 in	0.124 in	0.142 in	Beryllium Copper	Gold	0.043 in	Solder	No Tail
Harwin Inc. D01-9902401	2 N	6 N	-55 °C	100 °C	0.043 in	0.039 in	3.94 µin	0.057 in	0.016 in	0.02 in	0.124 in	0.142 in	Beryllium Copper	Gold	0.043 in	Solder	No Tail	Strip of 24
Harwin Inc. D01-9902001	2 N	6 N	-55 °C	100 °C	0.043 in	0.039 in	3.94 µin	0.057 in	0.016 in	0.02 in	0.124 in	0.142 in	Beryllium Copper	Gold	0.043 in	Solder	No Tail	Strip of 20
Harwin Inc. D01-9900301	2 N	6 N	-55 °C	100 °C	0.043 in	0.039 in	3.94 µin	0.057 in	0.016 in	0.02 in	0.124 in	0.142 in	Beryllium Copper	Gold	0.043 in	Solder	No Tail	Strip of 3
Harwin Inc. D01-9902005	2 N	6 N	-55 °C	100 °C	0.043 in	0.039 in	3.94 µin	0.057 in	0.016 in	0.02 in	0.124 in	0.142 in	Beryllium Copper	Gold	0.043 in	Solder	No Tail	Strip of 20
Harwin Inc. D01-9900401	2 N	6 N	-55 °C	100 °C	0.043 in	0.039 in	3.94 µin	0.057 in	0.016 in	0.02 in	0.124 in	0.142 in	Beryllium Copper	Gold	0.043 in	Solder	No Tail	Strip of 4
Harwin Inc. D01-9900605	2 N	6 N	-55 °C	100 °C	0.043 in	0.039 in	3.94 µin	0.057 in	0.016 in	0.02 in	0.124 in	0.142 in	Beryllium Copper	Gold	0.043 in	Solder	No Tail
Harwin Inc. D01-9901005	2 N	6 N	-55 °C	100 °C	0.043 in	0.039 in	3.94 µin	0.057 in	0.016 in	0.02 in	0.124 in	0.142 in	Beryllium Copper	Gold	0.043 in	Solder	No Tail
Harwin Inc. D01-9900801	2 N	6 N	-55 °C	100 °C	0.043 in	0.039 in	3.94 µin	0.057 in	0.016 in	0.02 in	0.124 in	0.142 in	Beryllium Copper	Gold	0.043 in	Solder	No Tail	Strip of 8
Harwin Inc. D01-9900901	2 N	6 N	-55 °C	100 °C	0.043 in	0.039 in	3.94 µin	0.057 in	0.016 in	0.02 in	0.124 in	0.142 in	Beryllium Copper	Gold	0.043 in	Solder	No Tail	Strip of 9
