Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-STM32MP-NFC08 | ST25R3916 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Near Field Communication (NFC) | Near Field Communication (NFC) |
| Interconnect System | Raspberry Pi HAT (40 pin) | Raspberry Pi HAT (40 pin) |
| Interface | - | I2C, SPI |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 32-VFQFN Exposed Pad |
| Standards | - | FeliCa, ISO 14443, ISO 15693, MIFARE, NFC |
| Supplier Device Package | - | 32-VFQFPN (5x5) |
| Type | RF | RF, RFID Reader/Transponder |
| Utilized IC / Part | ST25R3916B | ST25R3916B |
| Voltage - Supply | - | 2.4 V |
| Voltage - Supply | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.75 | |
ST25R3916 Series
STM32MP expansion board for NFC card reader
| Part | Type | Utilized IC / Part | Contents | Interconnect System | Function | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Interface | Package / Case | Mounting Type | Standards | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics ST25R3916-BWLT | ||||||||||||||
STMicroelectronics ST25R3916-AQWT | ||||||||||||||
STMicroelectronics ST25R3916-BWLT | ||||||||||||||
STMicroelectronics X-STM32MP-NFC08 | ||||||||||||||
STMicroelectronics X-STM32MP-NFC08 | RF | ST25R3916B | Board(s) | Raspberry Pi HAT (40 pin) | Near Field Communication (NFC) | |||||||||
STMicroelectronics ST25R3916-AQWT | ||||||||||||||
STMicroelectronics ST25R3916-AQET | ||||||||||||||
STMicroelectronics ST25R3916-AQWT | RFID Reader/Transponder | 125 °C | -40 °C | 2.4 V | 5.5 V | I2C, SPI | 32-VFQFN Exposed Pad | Surface Mount | FeliCa, ISO 14443, ISO 15693, MIFARE, NFC | 32-VFQFPN (5x5) |
Description
General part information
ST25R3916 Series

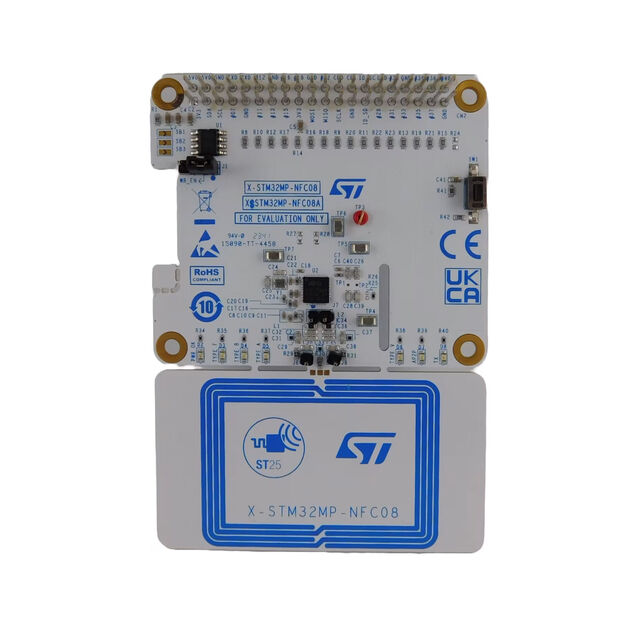

Then X-STM32MP-NFC08 is an NFC card reader evaluation board having an NFC card reader IC. It includes an antenna etched on the PCB and associated tuning circuit, general-purpose LEDs, and switches.
It embeds the ST25R3916B NFC card reader IC, which is a high-performance NFC universal device supporting NFC initiator, NFC target, NFC reader, and NFC card emulation modes.
The ST25R3916B device includes an advanced analog front end (AFE) and a highly integrated data framing system for: ISO 18092 passive and active initiator, ISO 18092 passive and active target, NFC-A/B (ISO 14443A/B) reader including higher bit rates, NFC-F (FeliCa™) reader, NFC-V (ISO 15693) reader up to 53 kbps, and NFC-A / NFC-F card emulation.
