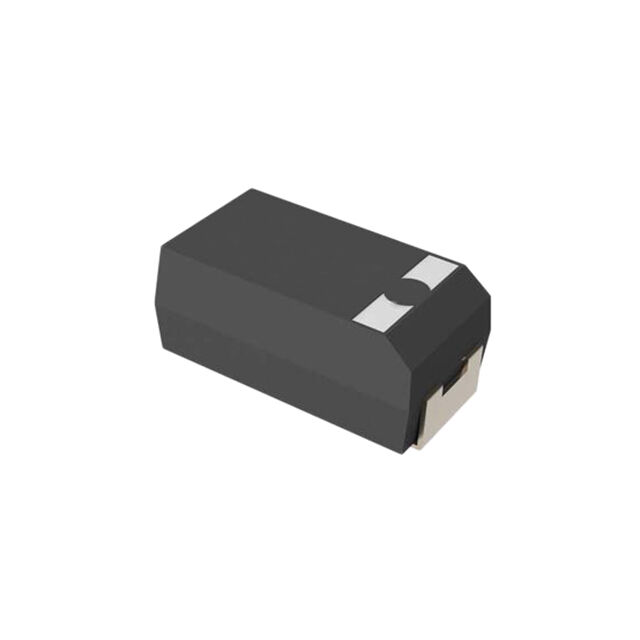

T521X106M075AHE0507280

Active

KEMET

CAP TANT POLY 10UF 75V 2917

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T52x,T530 Series, KO-CAP®

T521X106M075AHE0507280

Active

KEMET

CAP TANT POLY 10UF 75V 2917

Deep-Dive with AI

DocumentsDatasheet T52x,T530 Series, KO-CAP®

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T521X106M075AHE0507280

Capacitance	10 µF
ESR (Equivalent Series Resistance)	50 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.169 "
Height - Seated (Max) [Max]	4.3 mm
Manufacturer Size Code	X
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	75 V

T521X Series

Part	Manufacturer Size Code	Capacitance	Mounting Type	Tolerance	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Voltage - Rated	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Lifetime @ Temp.
KEMET T521X476M035AHE070	X	47 µF	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	35 V	General Purpose	-55 °C	125 °C	4.3 mm	0.287 "	7.3 mm	0.169 "	70 mOhm	2000 Hrs
KEMET T521X106M063ATE050	X	10 µF	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	63 V	General Purpose	-55 °C	125 °C	4.3 mm	0.287 "	7.3 mm	0.169 "	50 mOhm	2000 Hrs
KEMET T521X106M075AHE0507280	X	10 µF	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	75 V	General Purpose	-55 °C	105 ░C	4.3 mm	0.287 "	7.3 mm	0.169 "	50 mOhm
KEMET T521X107M025ATE0307280	X	100 µF	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	25 VDC	General Purpose	-55 °C	105 ░C	4.3 mm	0.287 "	7.3 mm	0.169 "	30 mOhm
KEMET T521X226M063ATE075	X	22 µF	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	63 V	General Purpose	-55 °C	125 °C	4.3 mm	0.287 "	7.3 mm	0.169 "	75 mOhm	2000 Hrs
KEMET T521X106M075AHE050	X	10 µF	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	75 V	General Purpose	-55 °C	105 ░C	4.3 mm	0.287 "	7.3 mm	0.169 "	50 mOhm
KEMET T521X226M063AHE0757280	X	22 µF	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	63 V	General Purpose	-55 °C	125 °C	4.3 mm	0.287 "	7.3 mm	0.169 "	75 mOhm	2000 Hrs
KEMET T521X227M016ATE035	X	220 µF	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	16 V	General Purpose	-55 °C	125 °C	4.3 mm	0.287 "	7.3 mm	0.169 "	35 mOhm	2000 Hrs
KEMET T521X156M063ATE150	X	15 µF	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	63 V	General Purpose	-55 °C	125 °C	4.3 mm	0.287 "	7.3 mm	0.169 "	150 mOhm	2000 Hrs
KEMET T521X107M025AHE0307280	X	100 µF	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	25 VDC	General Purpose	-55 °C	105 ░C	4.3 mm	0.287 "	7.3 mm	0.169 "	30 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 2.90

Description

General part information

T521X Series

10 µF Molded Tantalum Polymer Capacitor 75 V 2917 (7343 Metric) 50mOhm @ 100kHz
