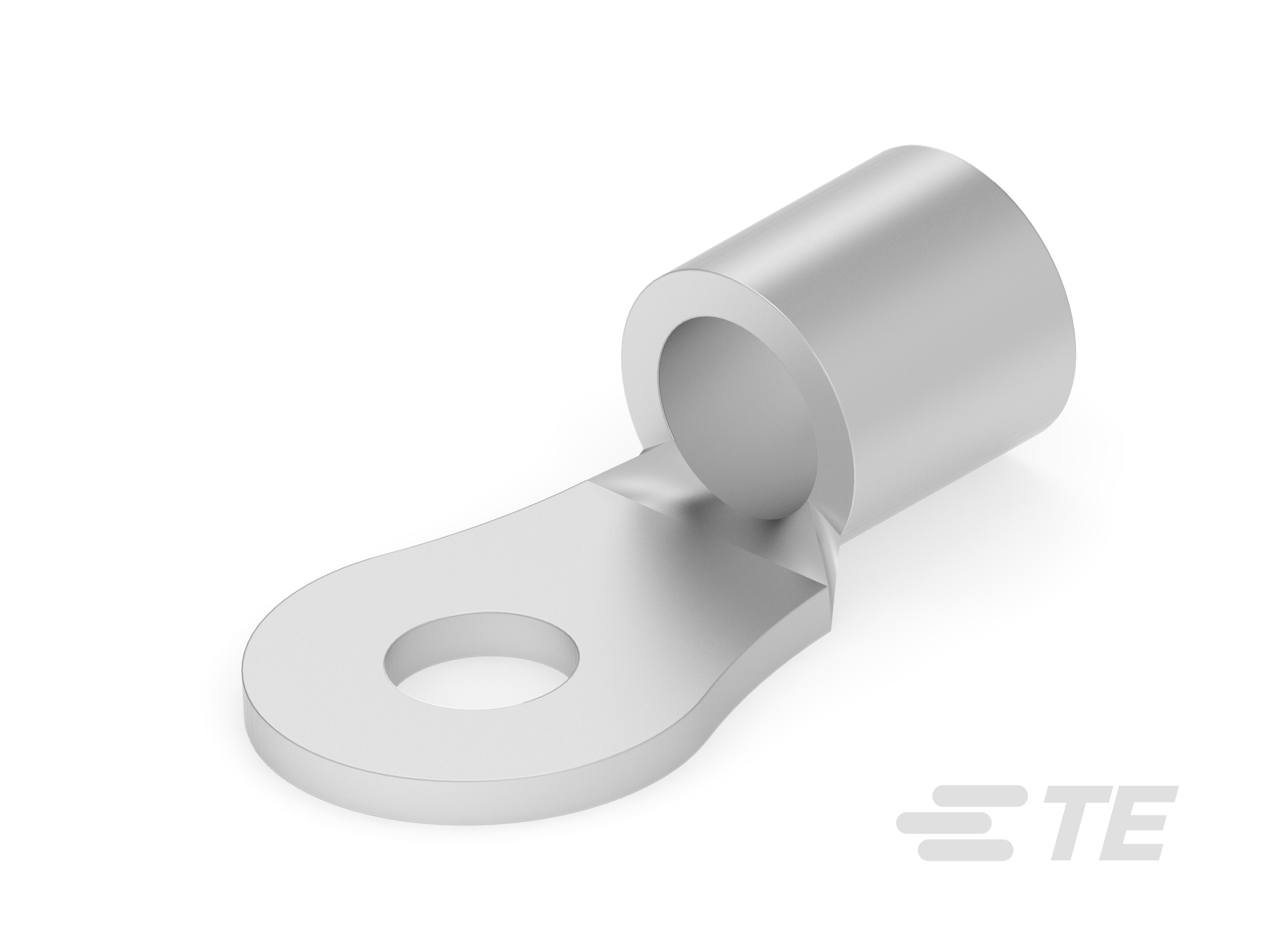

Specification	8-33469-2

Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination, Brazed Seam
Insulation	Non-Insulated
Length - Overall	1.314 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.07 in
Width - Outer Edges	0.656 in
Wire Gauge	4 AWG

33469 Series

Part	Length - Overall	Stud/Tab Size	Insulation	Contact Material	Features	Width - Outer Edges	Terminal Type	Mounting Type	Thickness	Wire Gauge	Termination	Contact Finish
TE Connectivity AMP Connectors 8-33469-2	1.314 in	0.25 Stud	Non-Insulated	Copper	Brazed Seam Serrated Termination	0.656 in	Circular	Free Hanging (In-Line)	0.07 in	4 AWG	Crimp	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.
