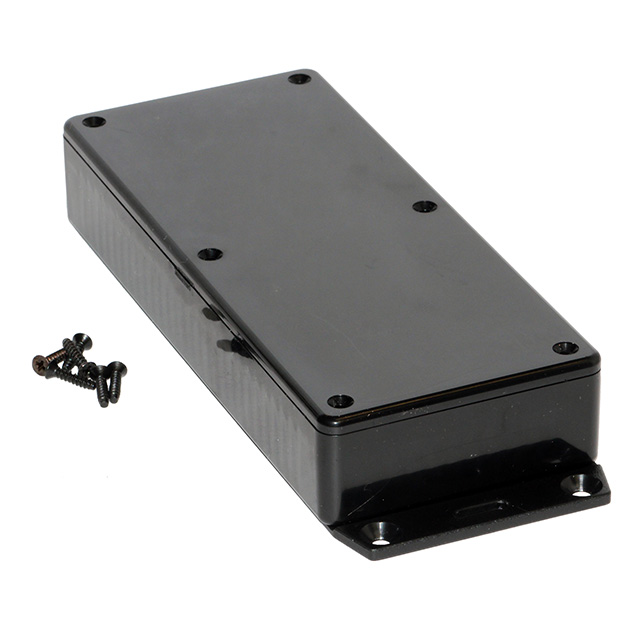

Specification	1591HF2BK

Area (L x W)	18.1 in²
Color	Black
Container Type	Box
Design	Cover Included
Features	Card Guides, Mounting Flange, Flame Retardant
Height	1.2 in
Material	ABS
Material Flammability Rating	UL94 V-0
Ratings	IP54
Size / Dimension Length	6.524 in
Size / Dimension Width	2.787 in
Thickness	0.079 in
Weight	0.28 lb

1591 Series

...

Part	Area (L x W)	Weight	Color	Material	Container Type	Ratings	Thickness	Design	Size / Dimension Length	Size / Dimension Width	Features	Height	Material Flammability Rating	Size / Dimension Height	Type	For Use With/Related Products
Hammond Manufacturing 1591ASGY	7.75 in²	0.08 lb	Gray	ABS	Box	IP54	0.079 in	Cover Included	3.937 in	1.969 in	Card Guides	0.977 in
Hammond Manufacturing 1591XXFBK	51.4 in²		Black	ABS	Box	IP54	0.124 in	Cover Included	8.701 in	5.906 in	Flame Retardant PCB Supports	63.5 mm	UL94 V-0
Hammond Manufacturing 1591TF2SGY	14.9 in²	0.27 lb	Gray	ABS	Box	IP54	0.079 in	Cover Included	4.724 in	3.157 in	Card Guides Mounting Flange	2.371 in
Hammond Manufacturing 1591HBK	18.1 in²	0.122 lb	Black	ABS	Box	IP54	0.079 in	Cover Included	6.524 in	2.787 in	Card Guides Flame Retardant	1.141 in	UL94 V-0
Hammond Manufacturing 1591TFLGY	14.9 in²	0.284 lb	Gray	ABS	Box	IP54	0.079 in	Cover Included	4.724 in	3.157 in	Card Guides Flame Retardant Mounting Flange	2.311 in	UL94 V-0
Hammond Manufacturing 1591FUBK			Black	Plastic					5.717 in	4.587 in	Flame Retardant			0.118 in	Cover Lid	1591U Series
Hammond Manufacturing 1591XXBFLBK	11.2 in²	0.14 lb	Black	ABS	Box	IP54	0.079 in	Cover Included	4.481 in	2.493 in	Flame Retardant Mounting Flange PCB Supports	1.289 in	UL94 V-0
Hammond Manufacturing 1591LSBK	7.38 in²	0.119 lb	Black	ABS	Box	IP54	0.079 in	Cover Included	3.346 in	2.205 in	Card Guides	1.535 in
Hammond Manufacturing 1591FTGY			Gray	ABS Plastic					5.787 in	3.017 in	Flame Retardant			0.118 in	Cover Lid	1591T Series
Hammond Manufacturing 1591F1BK-10			Black	ABS Plastic					1 in	2.2 in	Flame Retardant			0.1 in	Flange Kit	1591 A B C H L Series
