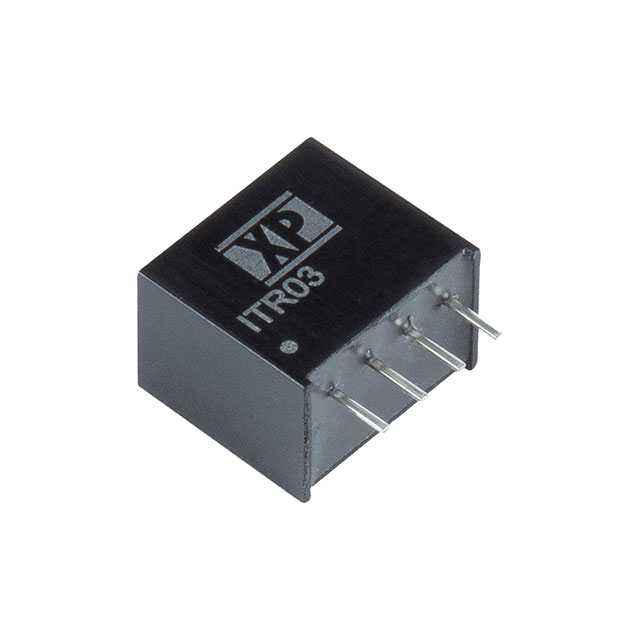

ITR0305S09
ActiveXP POWER
DC-DC 3W 10% INPUT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ITR0305S09
ActiveXP POWER
DC-DC 3W 10% INPUT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ITR0305S09 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 333 mA |
| Efficiency | 87 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 0.46 in |
| Size / Dimension [x] | 11.7 mm |
| Size / Dimension [y] | 7.5 mm |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [z] | 10.7 mm |
| Size / Dimension [z] | 0.42 in |
| Supplier Device Package | 3-SIP Module |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.60 | |
| 5 | $ 6.40 | |||
| 10 | $ 6.20 | |||
| 25 | $ 5.94 | |||
| 100 | $ 5.54 | |||
Description
General part information
ITR0305 Series
Isolated Module DC DC Converter 1 Output 9V 333mA 4.5V - 5.5V Input
