Specification	XC5VLX50-2FF676I

Mounting Type	Surface Mount
Number of I/O	440
Number of LABs/CLBs	3600
Number of Logic Elements/Cells	46080
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	676-BBGA, FCBGA
Package Length	27 mm
Package Name	676-FCBGA
Package Width	27 mm
Total RAM Bits	1769472 bits
Voltage - Supply (Maximum)	1.05 V
Voltage - Supply (Minimum)	0.95 V

XC5VLX50 Series

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Package Length	Package Name	Package Width	Package / Case	Number of I/O	Operating Temperature (Max)	Operating Temperature (Min)	Number of LABs/CLBs	Mounting Type	Number of Logic Elements/Cells	Total RAM Bits	P/N Breakdown	For Use With/Related Products	Utilized IC / Part	Type	Platform	Contents	Suggested Programming Environment
AMD / Xilinx XC5VLX50-2FF676I	0.95 V	1.05 V	27 mm	676-FCBGA	27 mm	676-BBGA FCBGA	440	100 °C	-40 °C	3600	Surface Mount	46080	1769472 bits
AMD / Xilinx XC5VLX50-1FFG1153I	0.95 V	1.05 V	35 mm	1153-FCBGA	35 mm	1153-BBGA FCBGA	560	100 °C	-40 °C	3600	Surface Mount	46080	1769472 bits
AMD / Xilinx HW-V5-ML505-UNI-G-J														J = Japan version does not ship with a power supply	XC5VLX50T	XC5VLX50T	FPGA	Virtex-5 LXT FPGA ML505 UNI Japan	Board Board(s) Power Supply Not Included
AMD / Xilinx XC5VLX50T-1FFG665I	0.95 V	1.05 V	27 mm	665-FCBGA	27 mm	665-BBGA FCBGA	360	100 °C	-40 °C	3600	Surface Mount	46080	2211840 bits

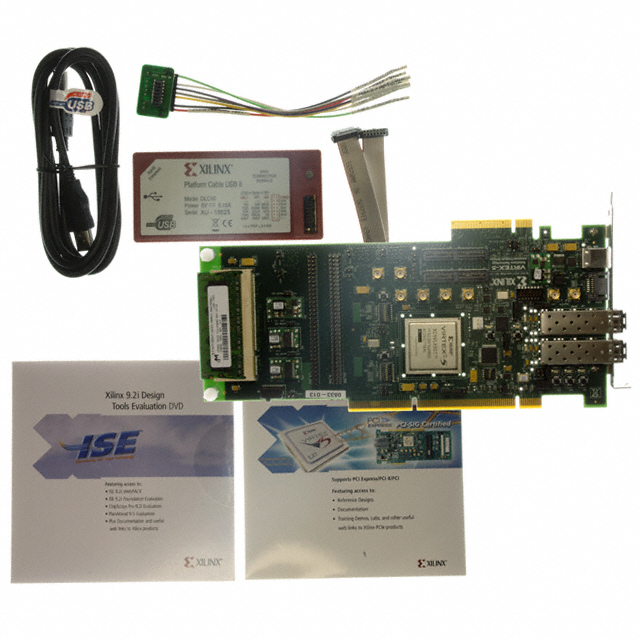

AMD / Xilinx HW-V5-ML555-G															XC5VLX50T	XC5VLX50T	FPGA	Virtex-5 LXT FPGA ML555 PCIe Card	Board Cable	ISE
AMD / Xilinx XC5VLX50-1FF1153I	0.95 V	1.05 V	35 mm	1153-FCBGA	35 mm	1153-BBGA FCBGA	560	100 °C	-40 °C	3600	Surface Mount	46080	1769472 bits
AMD / Xilinx HW-V5GBE-DK-UNI-G-PROMO2															XC5VLX50T	XC5VLX50T	FPGA	Virtex-5 LXT FPGA Gigabit Ethernet UNI	Board
AMD / Xilinx XC5VLX50T-2FF1136I	0.95 V	1.05 V	35 mm	1136-FCBGA	35 mm	1136-BBGA FCBGA	480	100 °C	-40 °C	3600	Surface Mount	46080	2211840 bits
AMD / Xilinx XC5VLX50-1FF676I	0.95 V	1.05 V	27 mm	676-FCBGA	27 mm	676-BBGA FCBGA	440	100 °C	-40 °C	3600	Surface Mount	46080	1769472 bits
AMD / Xilinx XC5VLX50T-1FFG665CES	0.95 V	1.05 V	27 mm	665-FCBGA	27 mm	665-BBGA FCBGA	360	85 °C	0 °C	3600	Surface Mount	46080	2211840 bits
