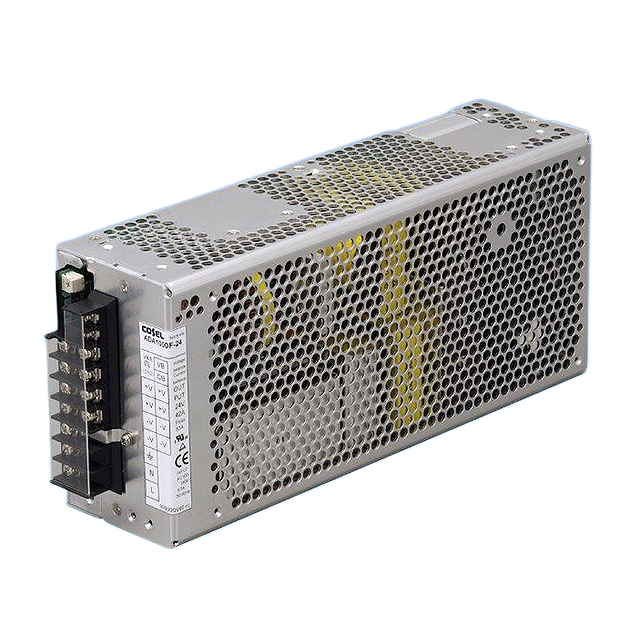

ADA1000F-36-J

Cosel USA, Inc.

AC/DC CONVERTER 36V 594W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ADA1000F-36-J

Cosel USA, Inc.

AC/DC CONVERTER 36V 594W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ADA1000F-36-J

Applications	ITE (Commercial)
Approval Agency	UL, TUV, cURus, CE, CSA
Current - Output 1	16.5 A
Efficiency	89 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	594 W
Power (Watts)	1008 W
Size / Dimension [x]	280 mm
Size / Dimension [x]	11.02 in
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	75 mm
Size / Dimension [z]	2.95 "
Standard Number	60950-1, 62368-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	36 V

ADA1000 Series

Part	Type	Current - Output 1	Power (Watts)	Power (Watts)	Approval Agency	Voltage - Isolation	Efficiency	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Number of Outputs	Mounting Type	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Input Type	Current - Output (Max) [Max]
Cosel USA, Inc. ADA1000F-36-C	Conformal Coated Enclosed	16.5 A	594 W	1008 W	CE CSA cURus TUV UL	3000 V	89 %	60950-1 62368-1	-10 °C	71 °C	ITE (Commercial)	1	Chassis Mount	36 V	5 "	75 mm	127 mm	280 mm	11.02 in	2.95 "
Cosel USA, Inc. ADA1000F-36-J	Enclosed	16.5 A	594 W	1008 W	CE CSA cURus TUV UL	3000 V	89 %	60950-1 62368-1	-10 °C	71 °C	ITE (Commercial)	1	Chassis Mount	36 V	5 "	75 mm	127 mm	280 mm	11.02 in	2.95 "
Cosel USA, Inc. ADA1000F-48-N1			552 W	1008 W	CE CSA cURus TUV UL	3000 V	89 %	60950-1 62368-1	-10 °C	71 °C	ITE (Commercial)	1		48 V	5 "	75 mm	127 mm	280 mm	11.02 in	2.95 "	85 VAC	264 VAC	Adjustable Output PFC Universal Input	AC	11.5 A
Cosel USA, Inc. ADA1000F-30-J	Enclosed	20 A	600 W 1005 W		CE CSA cURus TUV UL	3000 V	88 %	60950-1 62368-1	-10 °C	71 °C	ITE (Commercial)	1	Chassis Mount	30 V	5 "	75 mm	127 mm	280 mm	11.02 in	2.95 "
Cosel USA, Inc. ADA1000F-30-CR	Conformal Coated Enclosed	20 A	600 W 1005 W		CE CSA cURus TUV UL	3000 V	88 %	60950-1 62368-1	-10 °C	71 °C	ITE (Commercial)	1	Chassis Mount	30 V	5 "	75 mm	127 mm	280 mm	11.02 in	2.95 "			Adjustable Output DC Input Capable PFC Remote On/Off Universal Input
Cosel USA, Inc. ADA1000F-24	Enclosed	25 A	600 W	1008 W	CE CSA cURus TUV UL	3000 V	88 %	60950-1 62368-1	-10 °C	71 °C	ITE (Commercial)	1	Chassis Mount	24 V	5 "	75 mm	127 mm	280 mm	11.02 in	2.95 "
Cosel USA, Inc. ADA1000F-24-CT	Conformal Coated Enclosed	25 A	600 W	1008 W	CE CSA cURus TUV UL	3000 V	88 %	60950-1 62368-1	-10 °C	71 °C	ITE (Commercial)	1	Chassis Mount	24 V	5 "	75 mm	127 mm	280 mm	11.02 in	2.95 "
Cosel USA, Inc. ADA1000F-30-F	Enclosed	20 A	600 W 1005 W		CE CSA cURus TUV UL	3000 V	88 %	60950-1 62368-1	-10 °C	71 °C	ITE (Commercial)	1	Chassis Mount	30 V	5 "	75 mm	127 mm	280 mm	11.02 in	2.95 "
Cosel USA, Inc. ADA1000F-36-CT	Conformal Coated Enclosed	16.5 A	594 W	1008 W	CE CSA cURus TUV UL	3000 V	89 %	60950-1 62368-1	-10 °C	71 °C	ITE (Commercial)	1	Chassis Mount	36 V	5 "	75 mm	127 mm	280 mm	11.02 in	2.95 "
Cosel USA, Inc. ADA1000F-24-CN1			600 W	1008 W	CE CSA cURus TUV UL	3000 V	88 %	60950-1 62368-1	-10 °C	71 °C	ITE (Commercial)	1		24 V	5 "	75 mm	127 mm	280 mm	11.02 in	2.95 "	85 VAC	264 VAC	Adjustable Output PFC Universal Input	AC	25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 657.26

Description

General part information

ADA1000 Series

Enclosed AC DC Converters 1 Output 36V 85 ~ 264 VAC Input

Documents

Technical documentation and resources
