RG-11/U TYPE TRIAX

Search across all available documentation for this part.

Active

Belden Inc.

RG-11/U TYPE TRIAX

Technical Specifications

Parameters and characteristics for this part

Specification	8233 0101000

Cable Group	RG-11
Cable Type	Triaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	12.07 mm
Jacket (Insulation) Diameter [diameter]	0.475 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-55 °C
Shield Coverage	80 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Video
VoP, Velocity of Propagation	84
Wire Gauge	13.5 AWG

Part	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Shield Coverage	Jacket Color	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Cable Group	VoP, Velocity of Propagation	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand	Length [x]	Length [x]	Shield Type	Shield Material	Usage	Impedance	Conductor Material	Length	Length
Belden Inc. 8233 0102000	13.5 AWG	12.07 mm	0.475 in	Poly-Vinyl Chloride (PVC)	80 %	Black	7.24 mm	0.285 in	Triaxial	RG-11	84	80 C	-55 °C	Solid	2000 ft	609.6 m	Braid	Copper Bare	Video	75 Ohms	Copper Bare
Belden Inc. 8233 0101000	13.5 AWG	12.07 mm	0.475 in	Poly-Vinyl Chloride (PVC)	80 %	Black	7.24 mm	0.285 in	Triaxial	RG-11	84	80 C	-55 °C	Solid			Braid	Copper Bare	Video	75 Ohms	Copper Bare	304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.43

General part information

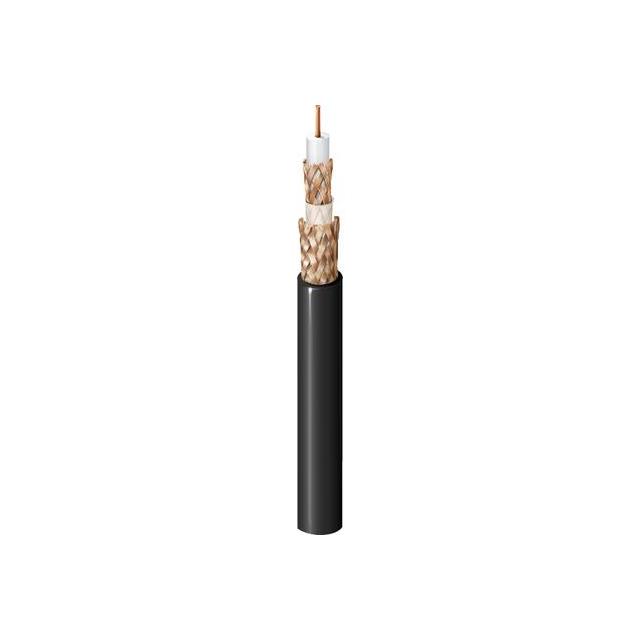

Triaxial Cable 14 AWG RG-11 1000.0' (304.80m) 75 Ohms
