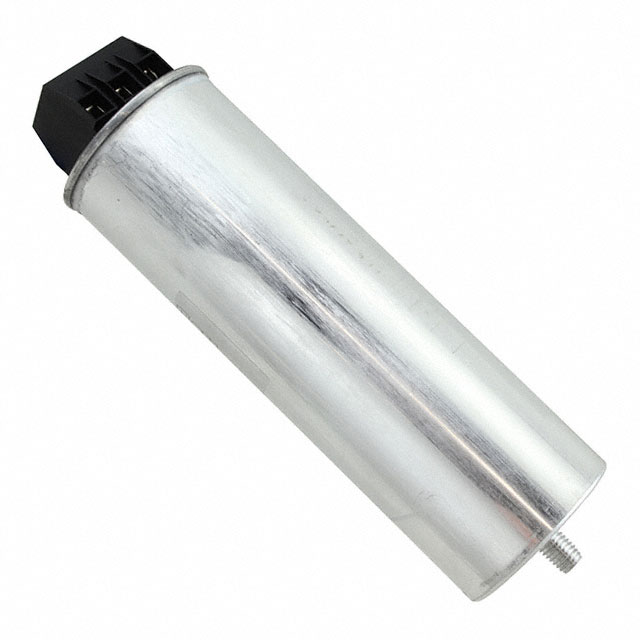

C9TS5MD6154AARX

Active

KEMET

CAP FILM 154UF 415VAC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Film Capacitors Catalog +1

C9TS5MD6154AARX

Active

KEMET

CAP FILM 154UF 415VAC RADIAL

Deep-Dive with AI

DocumentsDatasheet Power Film Capacitors Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C9TS5MD6154AARX

Applications	Power Factor Correction (PFC), 3 Phase
Capacitance	154 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	282 mm
Height - Seated (Max) [Max]	11.102 in
Lead Spacing	19 mm
Lead Spacing	0.748 in
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	3.346 "
Size / Dimension [diameter]	85 mm
Termination	Terminal Block
Tolerance [Max]	15 %
Tolerance [Min]	-5 %
Voltage Rating - AC	415 V

C9TS5MD Series

Part	Voltage Rating - AC	Applications	Dielectric Material	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Tolerance [Max]	Tolerance [Min]	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Package / Case
KEMET C9TS5MD6123AARX	415 V	3 Phase Power Factor Correction (PFC)	Metallized Polypropylene (PP)	282 mm	11.102 in	Terminal Block	15 %	-5 %	123 µF	55 °C	-25 °C	Chassis Stud Mount	75 mm	2.953 in	19 mm	0.748 in	Radial Can
KEMET C9TS5MD5770AARX	415 V	3 Phase Power Factor Correction (PFC)	Metallized Polypropylene (PP)	232 mm	9.134 in	Terminal Block	15 %	-5 %	77 µF	55 °C	-25 °C	Chassis Stud Mount	75 mm	2.953 in	19 mm	0.748 in	Radial Can
KEMET C9TS5MD6154AARX	415 V	3 Phase Power Factor Correction (PFC)	Metallized Polypropylene (PP)	282 mm	11.102 in	Terminal Block	15 %	-5 %	154 µF	55 °C	-25 °C	Chassis Stud Mount	85 mm	3.346 "	19 mm	0.748 in	Radial Can
KEMET C9TS5MD5460AARX	415 V	3 Phase Power Factor Correction (PFC)	Metallized Polypropylene (PP)	162 mm	6.378 "	Terminal Block	15 %	-5 %	46 µF	55 °C	-25 °C	Chassis Stud Mount	75 mm	2.953 in	19 mm	0.748 in	Radial Can
KEMET C9TS5MD5311AARX	415 V	3 Phase Power Factor Correction (PFC)	Metallized Polypropylene (PP)	162 mm	6.378 "	Terminal Block	15 %	-5 %	31.1 µF	55 °C	-25 °C	Chassis Stud Mount	75 mm	2.953 in	19 mm	0.748 in	Radial Can
KEMET C9TS5MD5920AARX	415 V	3 Phase Power Factor Correction (PFC)	Metallized Polypropylene (PP)	232 mm	9.134 in	Terminal Block	15 %	-5 %	92.2 µF	55 °C	-25 °C	Chassis Stud Mount	85 mm	3.346 "	19 mm	0.748 in	Radial Can

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 89.31
		18	$ 83.77
		54	$ 80.07
		108	$ 77.61

Description

General part information

C9TS5MD Series

154 µF Film Capacitor 415V Polypropylene (PP), Metallized Radial, Can

Documents

Technical documentation and resources

Datasheet

Power Film Capacitors Catalog

Datasheet

C9TS5MD6154AARX Spec

Datasheet
