STMM-105-02-S-D

Active

Samtec Inc.

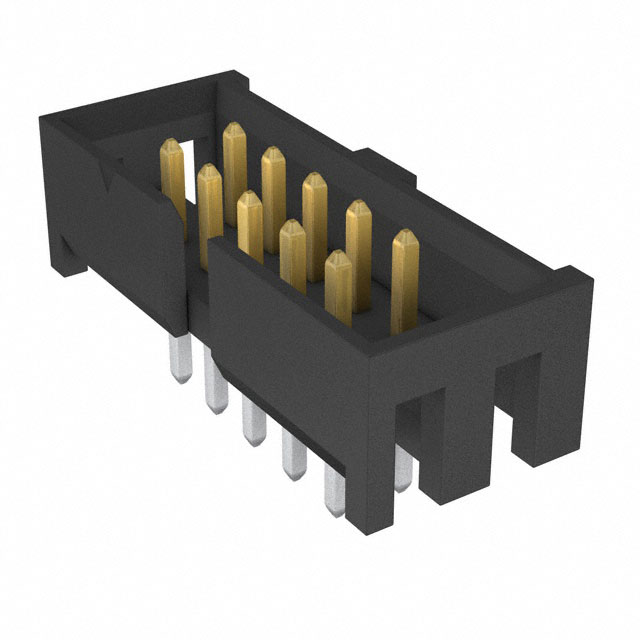

CONN HEADER VERT 10POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSTMM Datasheet STMM Series Datasheet 03 +3

STMM-105-02-S-D

Active

Samtec Inc.

CONN HEADER VERT 10POS 2MM

Deep-Dive with AI

DocumentsSTMM Datasheet STMM Series Datasheet 03 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STMM-105-02-S-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	4.83 mm
Insulation Height	0.19 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.302 in
Overall Contact Length	7.67 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

STMM-105 Series

Part	Insulation Height	Insulation Height	Contact Finish - Mating	Termination	Shrouding	Current Rating (Amps)	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Style	Number of Rows	Mounting Type	Contact Material	Contact Length - Mating	Contact Length - Mating	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Type	Number of Positions Loaded	Features	Contact Shape	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
Samtec Inc. STMM-105-02-S-D-SM-LC-K	4.83 mm	0.19 in	Gold	Solder	Shrouded - 4 Wall	3 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	Header	-55 °C	125 °C	Board to Cable/Wire	2	Surface Mount	Phosphor Bronze	3.05 mm	0.12 in	Black	0.079 in	2 mm	10	30 Áin	0.76 Ám	Push-Pull	Male Pin	All	Board Lock Keying Slot Pick and Place	Square
Samtec Inc. STMM-105-01-T-D-SM	4.83 mm	0.19 in		Solder	Shrouded - 4 Wall	3 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	Header	-55 °C	105 ░C	Board to Cable/Wire	2	Surface Mount	Phosphor Bronze	2.54 mm	0.1 in	Black	0.079 in	2 mm	10			Push-Pull	Male Pin	All	Keying Slot	Square
Samtec Inc. STMM-105-01-T-D-SM-LC-01	4.83 mm	0.19 in		Solder	Shrouded - 4 Wall	3 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	Header	-55 °C	105 ░C	Board to Cable/Wire	2	Surface Mount	Phosphor Bronze	2.54 mm	0.1 in	Black	0.079 in	2 mm	10			Push-Pull	Male Pin		Board Lock Keying Slot	Square	9
Samtec Inc. STMM-105-02-L-D-SM-K	4.83 mm	0.19 in	Gold	Solder	Shrouded - 4 Wall	3 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	Header	-55 °C	125 °C	Board to Cable/Wire	2	Surface Mount	Phosphor Bronze	3.05 mm	0.12 in	Black	0.079 in	2 mm	10	10 çin	0.25 çm	Push-Pull	Male Pin	All	Keying Slot Pick and Place	Square
Samtec Inc. STMM-105-02-SM-D-SM-LC	4.83 mm	0.19 in	Gold	Solder	Shrouded - 4 Wall	3 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	Header	-55 °C	125 °C	Board to Cable/Wire	2	Surface Mount	Phosphor Bronze	3.05 mm	0.12 in	Black	0.079 in	2 mm	10	30 Áin	0.76 Ám	Push-Pull	Male Pin	All	Board Lock Keying Slot	Square
Samtec Inc. STMM-105-01-S-D-SM-LC-P	4.83 mm	0.19 in	Gold	Solder	Shrouded - 4 Wall	3 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	Header	-55 °C	125 °C	Board to Cable/Wire	2	Surface Mount	Phosphor Bronze	2.54 mm	0.1 in	Black	0.079 in	2 mm	10	30 Áin	0.76 Ám	Push-Pull	Male Pin	All	Board Lock Keying Slot Pick and Place	Square
Samtec Inc. STMM-105-02-S-D-SM-LC-TR	4.83 mm	0.19 in	Gold	Solder	Shrouded - 4 Wall	3 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	Header	-55 °C	125 °C	Board to Cable/Wire	2	Surface Mount	Phosphor Bronze	3.05 mm	0.12 in	Black	0.079 in	2 mm	10	30 Áin	0.76 Ám	Push-Pull	Male Pin	All	Board Lock Keying Slot	Square
Samtec Inc. STMM-105-02-T-D	4.83 mm	0.19 in		Solder	Shrouded - 4 Wall	3 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	Header	-55 °C	105 ░C	Board to Cable/Wire	2	Through Hole	Phosphor Bronze	3.05 mm	0.12 in	Black	0.079 in	2 mm	10			Push-Pull	Male Pin	All	Keying Slot	Square		0.118 in	3 mm	0.302 in	7.67 mm
Samtec Inc. STMM-105-02-F-D-SM-TR	4.83 mm	0.19 in	Gold	Solder	Shrouded - 4 Wall	3 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	Header	-55 °C	125 °C	Board to Cable/Wire	2	Surface Mount	Phosphor Bronze	3.05 mm	0.12 in	Black	0.079 in	2 mm	10	3 µin	0.076 µm	Push-Pull	Male Pin	All	Keying Slot	Square
Samtec Inc. STMM-105-02-S-D	4.83 mm	0.19 in	Gold	Solder	Shrouded - 4 Wall	3 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	Header	-55 °C	125 °C	Board to Cable/Wire	2	Through Hole	Phosphor Bronze	3.05 mm	0.12 in	Black	0.079 in	2 mm	10	30 Áin	0.76 Ám	Push-Pull	Male Pin	All	Keying Slot	Square		0.118 in	3 mm	0.302 in	7.67 mm
