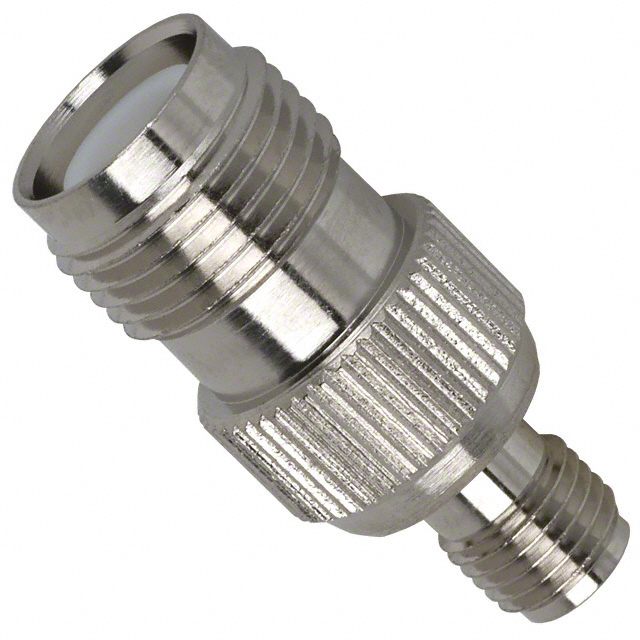

242107RP

Active

Amphenol RF

COAX ADAPT SMA TO RP-TNC

Search across all available documentation for this part.

Active

Amphenol RF

COAX ADAPT SMA TO RP-TNC

Technical Specifications

Parameters and characteristics for this part

Specification	242107RP

Adapter Series	SMA to RP-TNC
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	RP-TNC Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Contact Material	Conversion Type	Center Contact Plating	Dielectric Material	Mounting Type	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Impedance	Adapter Type	Convert To (Adapter End)	Convert From (Adapter End)	Adapter Series	Style	Frequency - Max [Max]
Amphenol RF 242107RP	Phosphor Bronze	Between Series	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Brass	-65 ░C	165 °C	Gold	50 Ohms	Jack to Jack	Male Pin RP-TNC Jack	Female Socket SMA Jack	SMA to RP-TNC	Straight	11 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To RP-TNC Jack, Male Pin 50 Ohms
