Specification	AD8007AKSZ-R2

-3db Bandwidth	650 MHz
Amplifier Type	Current Feedback
Current - Input Bias	4 µA
Current - Output / Channel	130 mA
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	SOT-353, SC-70-5, 5-TSSOP
Package Name	SC-70-5
Slew Rate	1000 V/µs
Voltage - Input Offset	500 µV
Voltage - Supply Span (Max)	12 V
Voltage - Supply Span (Min)	5 V

AD8007 Series

Part	Board Type	Supplied Contents	Utilized IC / Part	Amplifier Type	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Contents	Voltage - Supply Span (Min)	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Current - Input Bias	Voltage - Supply Span (Max)	Number of Circuits	Current - Output / Channel	Package Name	Package / Case	-3db Bandwidth	Voltage - Input Offset	Slew Rate	Package Length	Package Width
Analog Devices Inc./Maxim Integrated AD8007AR-EBZ	Bare (Unpopulated)	Board(s)	8-SOIC Package	Current Feedback	1	Single	1	Unpopulated (Bare) Board
Analog Devices Inc./Maxim Integrated AD8007AKS-REEL7				Current Feedback					5 V	Surface Mount	-40 °C	85 °C	4 µA	12 V	1	130 mA	SC-70-5	5-TSSOP SC-70-5 SOT-353	650 MHz	500 µV	1000 V/µs
Analog Devices Inc./Maxim Integrated AD8007AR				Current Feedback					5 V	Surface Mount	-40 °C	85 °C	4 µA	12 V	1	130 mA	8-SOIC		650 MHz	500 µV	1000 V/µs	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated AD8007AKSZ-R2				Current Feedback					5 V	Surface Mount	-40 °C	85 °C	4 µA	12 V	1	130 mA	SC-70-5	5-TSSOP SC-70-5 SOT-353	650 MHz	500 µV	1000 V/µs
Analog Devices Inc./Maxim Integrated AD8007AKS-R2				Current Feedback					5 V	Surface Mount	-40 °C	85 °C	4 µA	12 V	1	130 mA	SC-70-5	5-TSSOP SC-70-5 SOT-353	650 MHz	500 µV	1000 V/µs
Analog Devices Inc./Maxim Integrated AD8007AKSZ-REEL7				Current Feedback					5 V	Surface Mount	-40 °C	85 °C	4 µA	12 V	1	130 mA	SC-70-5	5-TSSOP SC-70-5 SOT-353	650 MHz	500 µV	1000 V/µs
Analog Devices Inc./Maxim Integrated AD8007ARZ				Current Feedback					5 V	Surface Mount	-40 °C	85 °C	4 µA	12 V	1	130 mA	8-SOIC		650 MHz	500 µV	1000 V/µs	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated AD8007AKS-REEL				Current Feedback					5 V	Surface Mount	-40 °C	85 °C	4 µA	12 V	1	130 mA	SC-70-5	5-TSSOP SC-70-5 SOT-353	650 MHz	500 µV	1000 V/µs
Analog Devices Inc./Maxim Integrated AD8007ARZ-RL				Current Feedback					5 V	Surface Mount	-40 °C	85 °C	4 µA	12 V	1	130 mA	8-SOIC		650 MHz	500 µV	1000 V/µs	0.154 in	3.9 mm

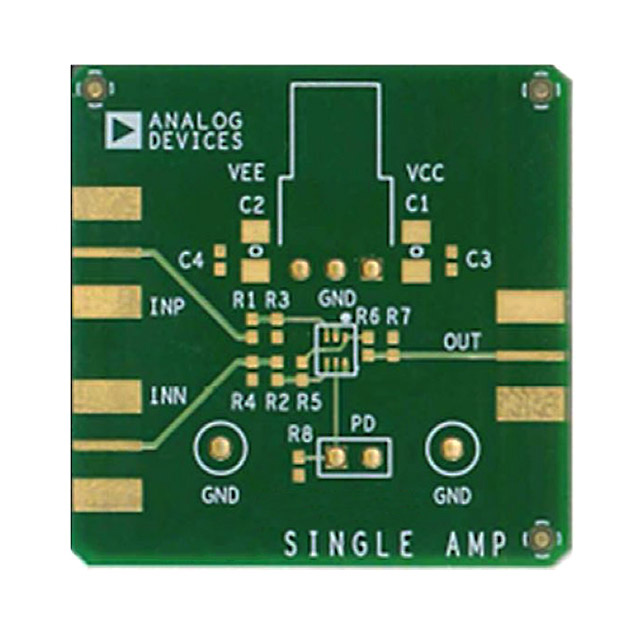

Analog Devices Inc./Maxim Integrated AD8007AKS-EBZ	Bare (Unpopulated)	Board(s)	SC-70-5 Package	Current Feedback	1	Single	1	Unpopulated (Bare) Board
