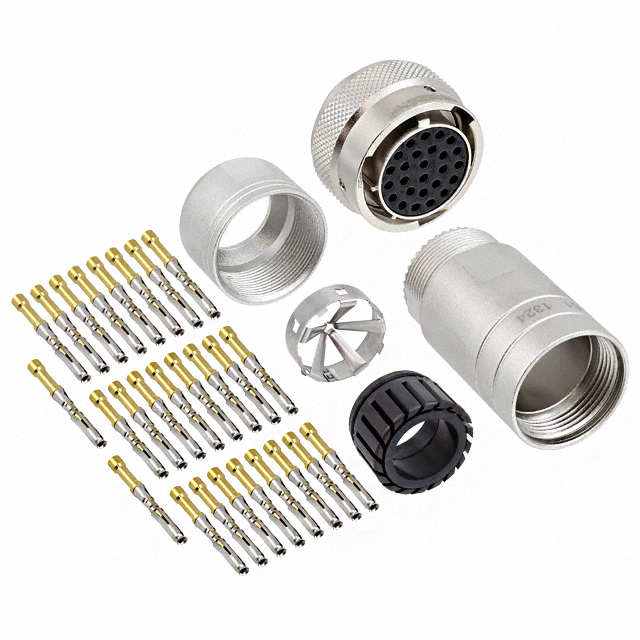

Specification	RT0W61626SNH-K

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Current Rating	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert (Maximum)	26
Shell Size - Insert (Minimum)	16 S
Termination	Crimp
Voltage Rating	150 VDC
Voltage Rating (Type)	DC

RT0W61626 Series

Part	Primary Material	Operating Temperature (Min)	Operating Temperature (Max)	Color	Contact Finish Thickness - Mating	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Voltage Rating	Voltage Rating (Type)	Shell Finish	Number of Positions	Mounting Type	Fastening Type	Connector Type	Shell Material	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish - Mating	Termination	Current Rating	Features	Housing Color	Material Flammability Rating	Type	Shielding	Contact Size	Contact Type
McGill Microwave Systems RT0W61626SNH-K	Metal	-40 °C	105 °C	Silver	Flash	16 S	26	150 VDC	DC	Nickel	26	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Zinc Die Cast	N (Normal)	Dust Tight Waterproof	IP67	Gold	Crimp	7.5 A
McGill Microwave Systems RT0W61626PNH-K	Metal	-40 °C	105 °C	Silver	Flash	16 S	26	150 VDC	DC	Nickel	26	Free Hanging (In-Line)	Bayonet Lock	Male Pins Plug	Zinc Die Cast	N (Normal)	Dust Tight Waterproof	IP67	Gold	Crimp	7.5 A
McGill Microwave Systems RT0W61626PNHEC03	Metal					16 S	26			Nickel	26	Free Hanging (In-Line)	Bayonet Lock	Plug Housing	Zinc Alloy	N (Normal)	Dust Tight Waterproof	IP67				Backshell Coupling Nut	Silver	UL94 V-0	For Male Pins	Shielded	20	Crimp
