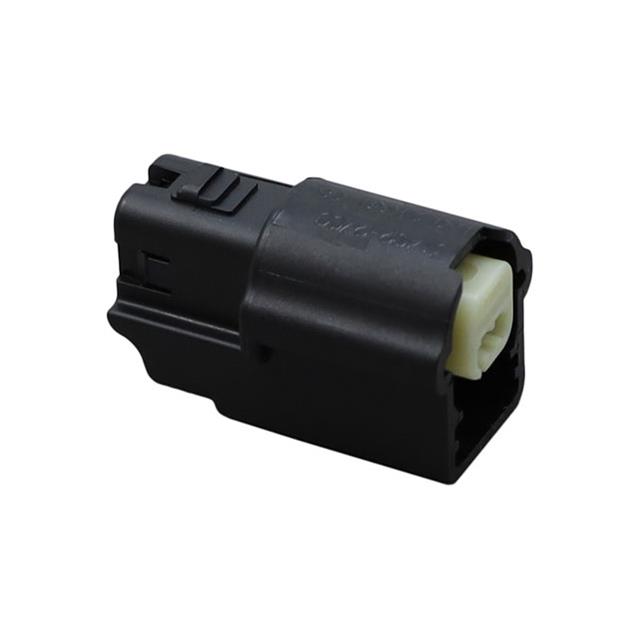

Specification	0314022700

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in

031402 Series

Part	Note	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Pitch	Contact Type	Mounting Type	Fastening Type	Features	Insulation Material	Color	Contact Termination	Connector Type	Number of Rows
Molex 0314026100	Contacts Not Included	6	125 °C	-40 °C	0.1 in	Female Socket	Free Hanging (In-Line)	Latch Holder	Sealed	Glass Filled Polybutylene Terephthalate (PBT)	Black	Crimp	Receptacle	1
Molex 0314022110	Contacts Not Included	2	125 °C	-40 °C	0.1 in	Female Socket	Free Hanging (In-Line)	Latch Holder	Connector Position Assurance (CPA) Sealed	Polybutylene Terephthalate (PBT)	Black	Crimp	Receptacle	1
Molex 0314022200	Contacts Not Included	2	125 °C	-40 °C	0.1 in	Female Socket	Free Hanging (In-Line)	Latch Holder	Sealed	Glass Filled Polybutylene Terephthalate (PBT)	Gray	Crimp	Receptacle	1
Molex 0314022700		2	125 °C	-40 °C	0.1 in	Female Socket	Free Hanging (In-Line)	Latch Holder	Sealed	Glass Filled Polybutylene Terephthalate (PBT)	Black	Crimp	Receptacle	1

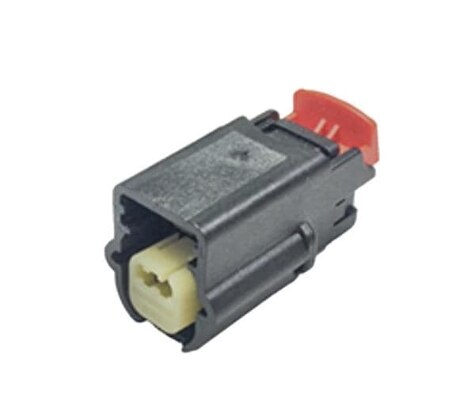

Molex 0314022510	Contacts Not Included	2	125 °C	-40 °C	0.1 in	Female Socket	Free Hanging (In-Line)	Latch Holder	Connector Position Assurance (CPA) Sealed	Polybutylene Terephthalate (PBT)	Black	Crimp	Receptacle	1
Molex 0314022610		2	125 °C	-40 °C	0.1 in	Female Socket	Free Hanging (In-Line)	Latch Holder	Connector Position Assurance (CPA) Sealed	Glass Filled Polybutylene Terephthalate (PBT)	Black	Crimp	Receptacle	1

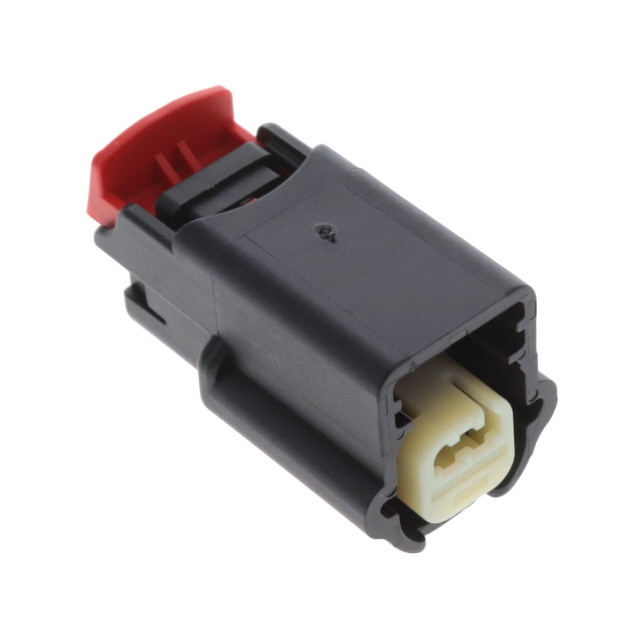

Molex 0314022710	Contacts Not Included	2	125 °C	-40 °C	0.1 in	Female Socket	Free Hanging (In-Line)	Latch Holder	Connector Position Assurance (CPA) Sealed	Polybutylene Terephthalate (PBT)	Black	Crimp	Receptacle	1
