IDSD-24-S-30.00-G

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Search across all available documentation for this part.

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Connector Type	Number of Positions	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Cable Termination	Number of Rows	Contact Finish	Length [x]	Length [x]	Color	Length	Length	Length	Length
Samtec Inc. IDSD-24-S-24.00-G	Unshielded	Socket to Cable	48	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold	2 '	609.6 mm
Samtec Inc. IDSD-24-D-08.00	Unshielded	Socket to Socket	48	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold			Multiple Ribbon	0.667 ft	8 in	203.2 mm
Samtec Inc. IDSD-24-S-06.00	Unshielded	Socket to Cable	48	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold			Multiple Ribbon		6 "	152.4 mm	0.5 '
Samtec Inc. IDSD-24-S-30.00-G	Unshielded	Socket to Cable	48	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold	30 "	762 mm
Samtec Inc. IDSD-24-S-24.00	Unshielded	Socket to Cable	48	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold	2 '	609.6 mm	Multiple Ribbon
Samtec Inc. IDSD-24-S-24.00-ST3	Unshielded	Socket to Cable	48	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold	2 '	609.6 mm	Multiple Ribbon
Samtec Inc. IDSD-24-D-06.50-G	Unshielded	Socket to Socket	48	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold				0.542 ft	6.5 "	165.1 mm
Samtec Inc. IDSD-24-D-07.50	Unshielded	Socket to Socket	48	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold			Multiple Ribbon
Samtec Inc. IDSD-24-D-60.00	Unshielded	Socket to Socket	48	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold			Multiple Ribbon	5 '		1.52 m
Samtec Inc. IDSD-24-D-12.00-P34	Unshielded	Socket to Socket	48	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold			Multiple Ribbon	1 ft		304.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

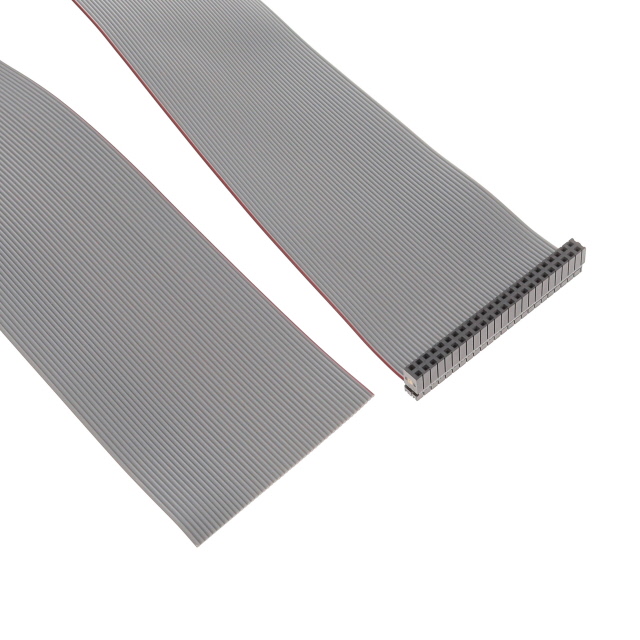

48 Position Cable Assembly Rectangular Socket to Cable 2.50' (762.00mm)
