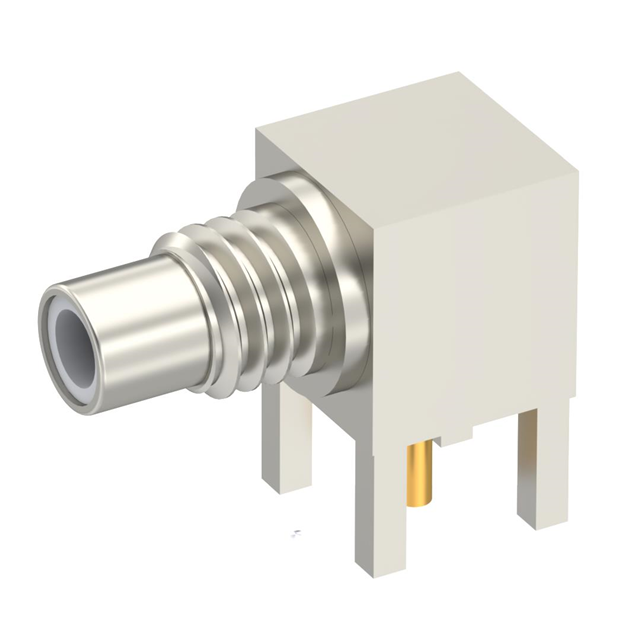

1010-7511-000

Active

Radiall USA, Inc.

SMC M RA BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M RA BHD

Technical Specifications

Parameters and characteristics for this part

Specification	1010-7511-000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

SMC M RA BHD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Mounting Type	Connector Style	Number of Ports	Body Finish	Contact Termination	Insertion Loss	Mating Cycles	Impedance	Shield Termination	Connector Type	Frequency - Max [Max]	Center Contact Plating	Body Material	Housing Color	Dielectric Material
Radiall USA, Inc. 1010-7511-000	-65 ░C	165 °C	Brass	Through Hole, Right Angle	SMC	1	Nickel	Solder	0.5 dB	500	50 Ohms	Solder	Jack, Male Pin	10 GHz	Gold	Brass	Silver	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 30.25

General part information

SMC Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder
