Q-0D07100031.5M

Active

Amphenol Custom Cable

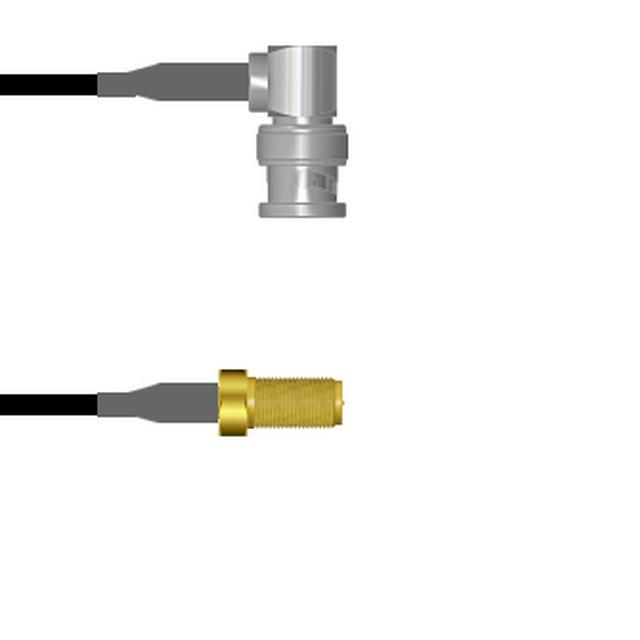

CBL ASSY RPSMA-BNC JACK-PLG 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D07100031.5M

Active

Amphenol Custom Cable

CBL ASSY RPSMA-BNC JACK-PLG 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D07100031.5M

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	RP-SMA to BNC

Q-0D0710 Series

Part	1st Contact Gender	Features	Overall Impedance	1st Connector	2nd Connector	2nd Connector Mounting Type	Frequency - Max [Max]	2nd Contact Gender	Style	Color	1st Connector Mounting Type	Length	Length	Cable Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0D0710003036i	Male	Shielded	50 Ohms	RP-SMA Jack	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	Male	RP-SMA to BNC	Black	Free Hanging (In-Line)	91.44 cm	36 in	RG-174
Amphenol Custom Cable Q-0D0710003.75M	Male	Shielded	50 Ohms	RP-SMA Jack	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	Male	RP-SMA to BNC	Black	Free Hanging (In-Line)	750 mm	29.53 "	RG-174
Amphenol Custom Cable Q-0D07100031.5M	Male	Shielded	50 Ohms	RP-SMA Jack	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	Male	RP-SMA to BNC	Black	Free Hanging (In-Line)	1.5 m	59.1 in	RG-174	4.9 ft
Amphenol Custom Cable Q-0D0710005012i	Male	Shielded	50 Ohms	RP-SMA Jack	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	Male	RP-SMA to BNC	Copper	Free Hanging (In-Line)	304.8 mm	12 "	RG-316
Amphenol Custom Cable Q-0D0710005003M	Male	Shielded	50 Ohms	RP-SMA Jack	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	Male	RP-SMA to BNC	Copper	Free Hanging (In-Line)	3 m	118.1 in	RG-316	9.8 '
Amphenol Custom Cable Q-0D07100032.5M	Male	Shielded	50 Ohms	RP-SMA Jack	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	Male	RP-SMA to BNC	Black	Free Hanging (In-Line)	2.5 m	98.4 in	RG-174	8.2 '
Amphenol Custom Cable Q-0D0710005018i	Male	Shielded	50 Ohms	RP-SMA Jack	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	Male	RP-SMA to BNC	Copper	Free Hanging (In-Line)			RG-316		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0D0710005006i	Male	Shielded	50 Ohms	RP-SMA Jack	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	Male	RP-SMA to BNC	Copper	Free Hanging (In-Line)	152.4 mm	6 in	RG-316
Amphenol Custom Cable Q-0D0710003108i	Male	Shielded	50 Ohms	RP-SMA Jack	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	Male	RP-SMA to BNC	Black	Free Hanging (In-Line)	2.7 m	108 in	RG-174	9 ft
Amphenol Custom Cable Q-0D0710003018i	Male	Shielded	50 Ohms	RP-SMA Jack	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	Male	RP-SMA to BNC	Black	Free Hanging (In-Line)			RG-174		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 62.79
		25	$ 58.49
		50	$ 54.19
		100	$ 50.51
		250	$ 47.44

Description

General part information

Q-0D0710 Series

Cable Assembly Coaxial RP-SMA to BNC RG-174 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
