ROTARY SWITCH, 2 POSITION, 2 POLE, 90 °, 10 A, 600 V, HW SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW1S-2TF20

Active

IDEC Corporation

ROTARY SWITCH, 2 POSITION, 2 POLE, 90 °, 10 A, 600 V, HW SERIES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HW1S-2TF20	HW1S-2T Series

Approval Agency	TUV, CSA, CCC, CE, UL	TUV, CSA, CCC, CE, UL
Circuit	DPST-NO	SPST-NO, DPST-NO
Current Rating (Amps)	8 A, 10 A	8 - 10 A
Depth Behind Flange [z]	48.5 mm	48.5 mm
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles	500000 Cycles
Number of Positions	2	2
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	Off-On	Off-On
Termination Style	Screw Terminal	Screw Terminal
Type	Standard	Standard
Voltage Rating - AC	110 V	110 V
Voltage Rating - DC	24 V	24 V

HW1S-2T Series

ROTARY SWITCH, 2 POSITION, 1 POLE, 90 °, 10 A, 600 V, HW SERIES

Part	Current Rating (Amps)	Voltage Rating - AC	Termination Style	Ingress Protection	Number of Positions	Mechanical Life	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Depth Behind Flange [z]	Circuit	Panel Cutout Dimensions [diameter]	Illumination	Type	Voltage Rating - DC	Approval Agency
IDEC Corporation HW1S-2TF10	8 A, 10 A	110 V	Screw Terminal	IP65 - Dust Tight, Water Resistant	2	500000 Cycles	Off-On	50 °C	-25 °C	48.5 mm	SPST-NO	22.3 mm	Non-Illuminated	Standard	24 V	CCC, CE, CSA, TUV, UL
IDEC Corporation HW1S-2TF20	8 A, 10 A	110 V	Screw Terminal	IP65 - Dust Tight, Water Resistant	2	500000 Cycles	Off-On	50 °C	-25 °C	48.5 mm	DPST-NO	22.3 mm	Non-Illuminated	Standard	24 V	CCC, CE, CSA, TUV, UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.08
		5	$ 24.99
		10	$ 23.41
		25	$ 21.46
		50	$ 20.09
		100	$ 18.80
		250	$ 17.21
		500	$ 16.52
Newark	Each	1	$ 26.51
		5	$ 24.39
		10	$ 22.54
		25	$ 20.42
		50	$ 18.82

Description

General part information

HW1S-2T Series

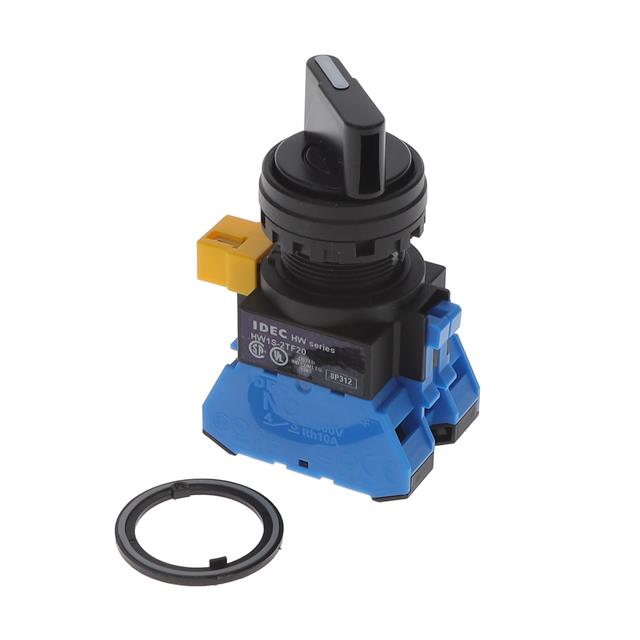

The HW1S-2TF20 is a 22mm double-pole single-throw (DPST) 2-position Selector Switch with maintained operation, knob handle and 2NO contacts. The assembled HW-series with plastic bezel.
