M40-6001546

Obsolete

Harwin Inc.

CONN PLUG 15POS SMD TIN

Search across all available documentation for this part.

Obsolete

Harwin Inc.

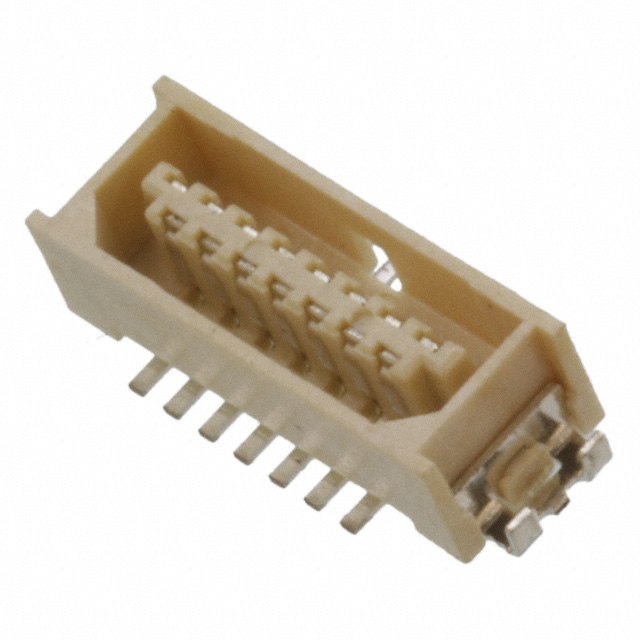

CONN PLUG 15POS SMD TIN

Technical Specifications

Parameters and characteristics for this part

Specification	M40-6001546

Contact Finish	Tin
Contact Finish Thickness	80 Áin
Contact Finish Thickness	2.03 Ám
Features	Solder Retention, Board Guide
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mated Stacking Heights [z]	4.3 mm
Mounting Type	Surface Mount
Number of Positions	15
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights [z]	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions
Harwin Inc. M40-6001546	0.039 in	1 mm	4.3 mm	0.13 in	3.3 mm	Tin	Surface Mount	Board Guide Solder Retention	80 Áin	2.03 Ám	2	15
Harwin Inc. M40-6005146R	0.039 in	1 mm	4.3 mm	0.13 in	3.3 mm	Tin	Surface Mount	Board Guide Pick and Place Solder Retention	80 Áin	2.03 Ám	2	51
Harwin Inc. M40-6002146R	0.039 in	1 mm	4.3 mm	0.13 in	3.3 mm	Tin	Surface Mount	Board Guide Pick and Place Solder Retention	80 Áin	2.03 Ám	2	21
Harwin Inc. M40-6005146	0.039 in	1 mm	4.3 mm	0.13 in	3.3 mm	Tin	Surface Mount	Board Guide Solder Retention	80 Áin	2.03 Ám	2	51
Harwin Inc. M40-6004146R	0.039 in	1 mm	4.3 mm	0.13 in	3.3 mm	Tin	Surface Mount	Board Guide Solder Retention	80 Áin	2.03 Ám	2	41
Harwin Inc. M40-6004146	0.039 in	1 mm	4.3 mm	0.13 in	3.3 mm	Tin	Surface Mount	Board Guide Solder Retention	80 Áin	2.03 Ám	2	41

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Position Connector Plug, Center Strip Contacts Surface Mount Tin
