PTVA127002EV-V1-R0
ActiveMACOM Technology Solutions

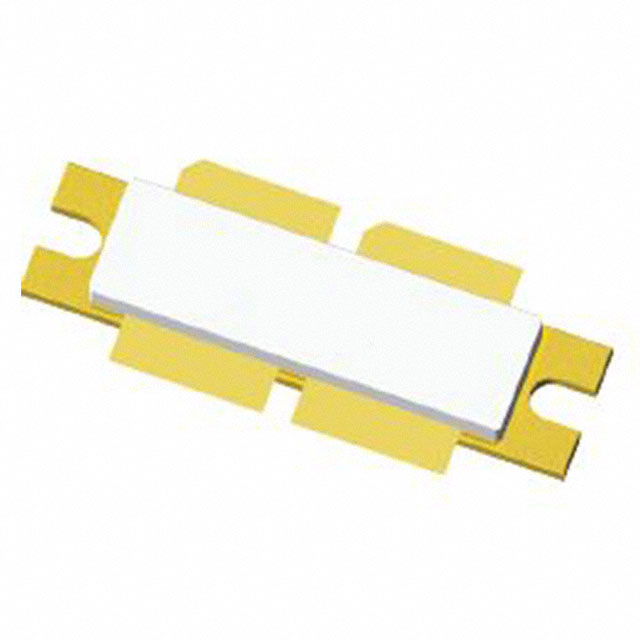

RF MOSFET LDMOS 50V H-36275-4
PTVA127002EV-V1-R0
ActiveMACOM Technology Solutions
RF MOSFET LDMOS 50V H-36275-4
Description
General part information
PTVA127002 Series
RF Mosfet 50 V 150 mA 1.2GHz ~ 1.4GHz 16dB 700W H-36275-4
Technical Specifications
Parameters and characteristics for this part
| Specification | PTVA127002EV-V1-R0 |
|---|---|
| Current - Test | 150 mA |
| Current Rating | 10 µA |
| Frequency (Max) | 1.4 GHz |
| Frequency (Min) | 1.2 GHz |
| Gain | 16 dB |
| Mounting Type | Chassis Mount |
| Package / Case | H-36275-4 |
| Package Name | H-36275-4 |
| Power - Output | 700 W |
| Technology | LDMOS |
| Voltage - Rated | 105 V |
| Voltage - Test | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
