Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-MKIT01V2 | STEVAL-MKIT01V2 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Accelerometer, Microphone, Gyroscope, Magnetometer | Accelerometer, Microphone, Gyroscope, Magnetometer |
| Interconnect System | DIL24 | DIL24 |
| Platform | Professional MEMS Tool | Professional MEMS Tool |
| Suggested Programming Environment | Unico | Unico |
| Type | Sensor | Sensor |
| Utilized IC / Part | MP23ABS1, LSM6DSOX, LIS2DW12, LIS2MDL | MP23ABS1, LSM6DSOX, LIS2DW12, LIS2MDL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
STEVAL-MKIT01V2 Series
MEMS sensor sample kit
| Part | Interconnect System | Type | Function | Suggested Programming Environment | Platform | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|
STMicroelectronics STEVAL-MKIT01V2 | |||||||
STMicroelectronics STEVAL-MKIT01V2 | DIL24 | Sensor | Accelerometer, Gyroscope, Magnetometer, Microphone | Unico | Professional MEMS Tool | Board(s) | LIS2DW12, LIS2MDL, LSM6DSOX, MP23ABS1 |
STMicroelectronics STEVAL-MKIT01V2 |
Description
General part information
STEVAL-MKIT01V2 Series

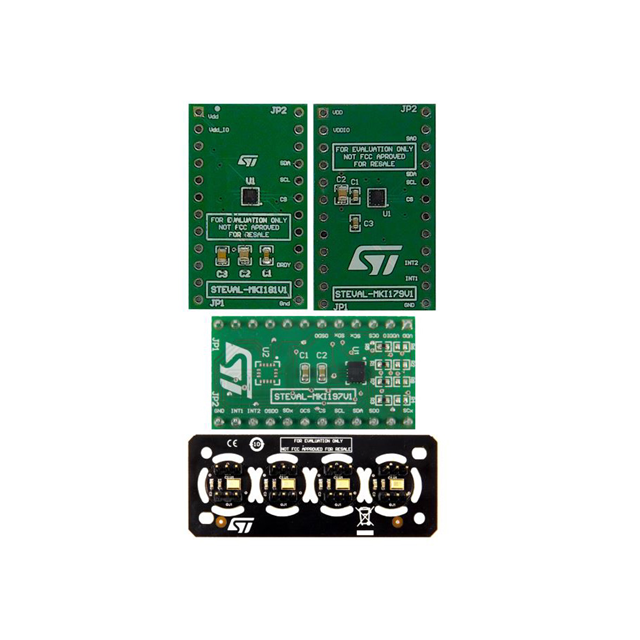

The STEVAL-MKIT01V2 is a MEMS sensor sample kit containing four sensor adapter boards that can be evaluated in standalone mode by simply connecting an I²C cable and an analog cable for the microphone.
The STEVAL-MKIxxxV1 evaluation boards can be plugged into a standard DIL 24 socket and can be used together with the STEVAL-MKI109V3 mother board, based on the STM32F401VET6 microcontroller, for a more in-depth evaluation.
The STEVAL-MIC004V1 is a daughter board containing 4 coupon boards with MP23ABS1 microphones. This board can be plugged onto an X-NUCLEO-AMICAM1 expansion board.
