306-016-521-158

Active

EDAC Inc.

CONN EDGE DUAL FMALE 32POS 0.156

306-016-521-158

Active

EDAC Inc.

CONN EDGE DUAL FMALE 32POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

306-016 Series

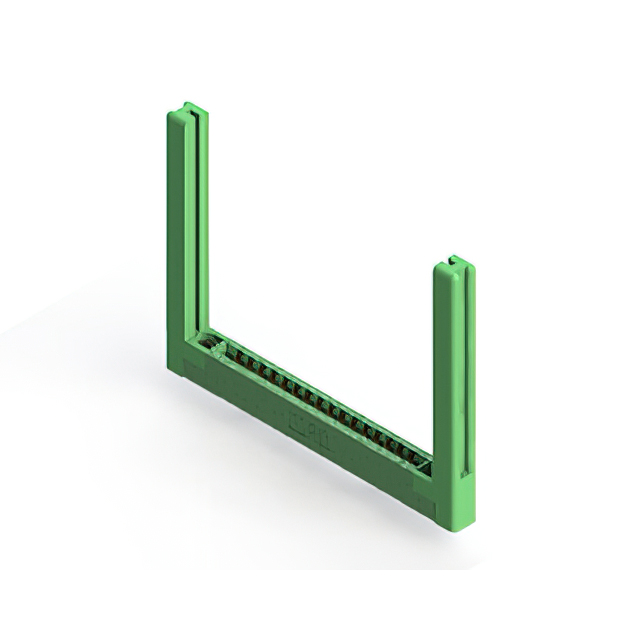

32 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	306-016-521-158

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Panel Mount, Through Hole
Number of Positions	16, 32
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	1 rows

306-016 Series

Part	Pitch	Read Out	Contact Type	Number of Positions	Card Thickness (Min)	Card Thickness (Max)	Termination	Card Type	Color	Number of Rows	Contact Finish	Contact Finish Thickness	Operating Temperature (Min)	Operating Temperature (Max)	Gender	Mounting Type	Flange Feature Diameter	Flange Feature	Contact Material	Material - Insulation	Termination Rows	Features
EDAC Inc. 306-016-520-112	0.156 in	Dual	Cantilever	16 32	0.054 in	0.07 in	Solder	Dual Edge Non Specified	Green	2	Gold	10 Ąin	-40 °C	105 °C	Female	Panel Mount Through Hole	0.128 in	Flush Mount Side Opening Unthreaded	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 306-016-421-178	0.156 in	Dual	Cantilever	16 32	0.054 in	0.07 in	Solder	Dual Edge Non Specified	Green	2	Tin		-40 °C	105 °C	Female	Panel Mount Through Hole		4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Polyester Thermoplastic	1 rows	Card Guides
EDAC Inc. 306-016-500-112	0.156 in	Dual	Cantilever	16 32	0.054 in	0.07 in	Solder Eyelet(s)	Dual Edge Non Specified	Green	2	Gold	10 Ąin	-40 °C	105 °C	Female	Panel Mount	0.128 in	Flush Mount Side Opening Unthreaded	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 306-016-421-103	0.156 in	Dual	Cantilever	16 32	0.054 in	0.07 in	Solder	Dual Edge Non Specified	Green	2	Tin		-40 °C	105 °C	Female	Panel Mount Through Hole	0.116 in	Floating Bobbin Flush Mount	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 306-016-400-108	0.156 in	Dual	Cantilever	16 32	0.054 in	0.07 in	Solder Eyelet(s)	Dual Edge Non Specified	Green	2	Tin		-40 °C	105 °C	Female	Panel Mount		4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 306-016-521-158	0.156 in	Dual	Cantilever	16 32	0.054 in	0.07 in	Solder	Dual Edge Non Specified	Green	2	Gold	10 Ąin	-40 °C	105 °C	Female	Panel Mount Through Hole		4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Polyester Thermoplastic	1 rows	Card Guides
EDAC Inc. 306-016-520-101	0.156 in	Dual	Cantilever	16 32	0.054 in	0.07 in	Solder	Dual Edge Non Specified	Green	2	Gold	10 Ąin	-40 °C	105 °C	Female	Through Hole			Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 306-016-420-178	0.156 in	Dual	Cantilever	16 32	0.054 in	0.07 in	Solder	Dual Edge Non Specified	Green	2	Tin		-40 °C	105 °C	Female	Panel Mount Through Hole		4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Polyester Thermoplastic	1 rows	Card Guides
EDAC Inc. 306-016-400-102	0.156 in	Dual	Cantilever	16 32	0.054 in	0.07 in	Solder Eyelet(s)	Dual Edge Non Specified	Green	2	Tin		-40 °C	105 °C	Female	Panel Mount	0.128 in	Flush Mount Top Opening Unthreaded	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 306-016-421-168	0.156 in	Dual	Cantilever	16 32	0.054 in	0.07 in	Solder	Dual Edge Non Specified	Green	2	Tin		-40 °C	105 °C	Female	Panel Mount Through Hole		4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Polyester Thermoplastic	1 rows	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

306-016-521-158 | Datasheet
