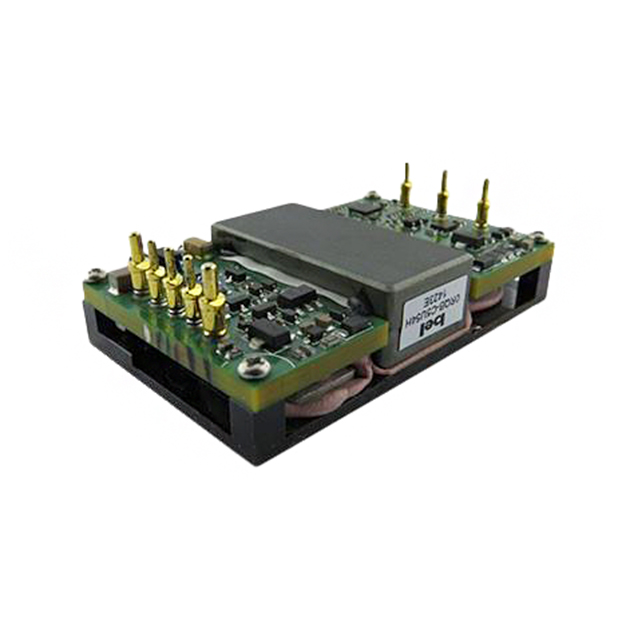

0RQB-C5U54LG

Active

Bel Power Solutions

ISOLATED DC/DC CONVERTERS - THROUGH HOLE ISOLATED DC-DC CONVERTER

Search across all available documentation for this part.

Active

Bel Power Solutions

ISOLATED DC/DC CONVERTERS - THROUGH HOLE ISOLATED DC-DC CONVERTER

Technical Specifications

Parameters and characteristics for this part

Specification	0RQB-C5U54LG

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	3 A
Efficiency	89 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	162 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	36.8 mm
Size / Dimension [y]	1.45 in
Size / Dimension [z]	15 mm
Size / Dimension [z]	0.59 in
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	54 V

Isolated DC/DC Converters - Through Hole Isolated DC-DC Converter

Part	Voltage - Input (Min) [Min]	Voltage - Output 1	Features	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Type	Voltage - Isolation	Control Features	Supplier Device Package	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Applications	Number of Outputs	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
Bel Power Solutions 0RQB-C5U54LG	18 V	54 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	Quarter Brick	90 °C	-40 °C	89 %	Isolated Module	2250 VDC	Active Low, Enable	Quarter Brick	3 A	75 V	162 W	ITE (Commercial)	1	Through Hole	36.8 mm	1.45 in	2.3 in	15 mm	0.59 in	58.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - Through Hole Isolated DC-DC Converter

Technical documentation and resources
