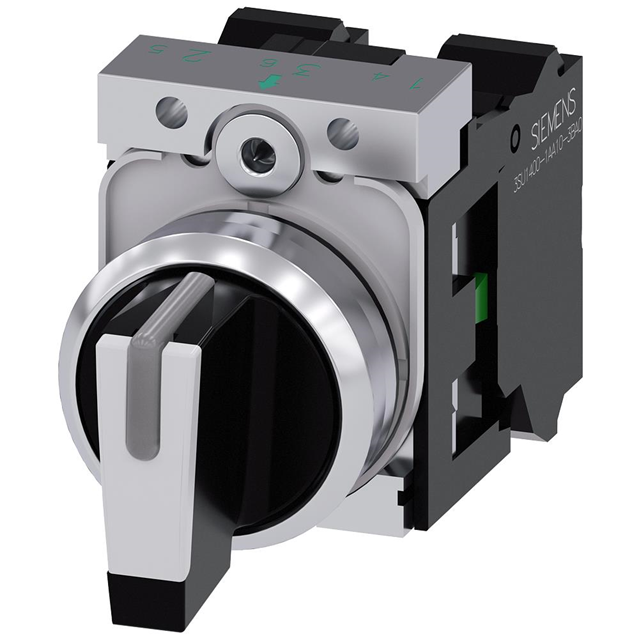

3SU11502BL603NA0

Active

Siemens

SWITCH SELECT 3POS DPST 10A 500V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS ACT Profinet Integration WhitePaper Datasheet +1

3SU11502BL603NA0

Active

Siemens

SWITCH SELECT 3POS DPST 10A 500V

Deep-Dive with AI

DocumentsSIRIUS ACT Profinet Integration WhitePaper Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SU11502BL603NA0

Approval Agency	EAC, CCC, UL, CSA, CE
Circuit	DPST-NO
Current Rating (Amps)	10 A
Depth Behind Flange	49.7 mm
Electrical Life	10000000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	1000000 Cycles
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-On
Termination Style	Spring Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

3SU1150 Series

Part	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Termination Style	Output	Current Rating (Amps)	Ingress Protection	Type	Electrical Life	Actuator Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Voltage Rating - DC	Voltage Rating - AC	Mounting Type	Circuit	Color - Actuator/Cap	Key Removable Positions	Depth Behind Flange [z]	Angle of Throw	Contact Timing	Contact Finish	Number of Positions	Reset Operation	Depth Behind Flange	Illumination	Approval Agency
Siemens 3SU11507AB881NA0	360° Directional	70 °C	-25 °C	Silver Alloy	Screw Terminal	Digital (Mechanical Switch)	10 A	IP65 IP67 - Dust Tight Water Resistant Waterproof	Joystick 2 - Axis	10000000 Cycles	Joystick	22.3 mm	100000 Cycles	500 V	500 V
Siemens 3SU11500AB303FA0	Off-Mom On-Mom	70 °C	-25 °C		Spring Terminal		10 A	IP66 IP67 IP69K	Standard	10000000 Cycles	Button Round	22.3 mm	10000000 Cycles	500 V	500 V	Panel Mount Front	DPST-NO/NC	Yellow
Siemens 3SU11504BF113FA0	Off-On On-Off	70 °C	-25 °C	Silver Alloy	Spring Terminal		10 A			10000000 Cycles	Flat Key	22.3 mm	300000 Cycles	500 V	500 V		DPST-NO/NC		All	49.4 mm	90 °	Not Specified	Silver	2
Siemens 3SU11500AB601FA0	Off-Mom On-Mom	70 °C	-25 °C		Screw Terminal		10 A	IP66 IP67 IP69K	Standard	10000000 Cycles	Button Round	22.3 mm	10000000 Cycles	500 V	500 V	Panel Mount Front	DPST-NO/NC	White
Siemens 3SU11501HA203PH0	On-Off	70 °C	-25 °C		Spring Terminal		10 A	IP66 IP67 IP69K				22.3 mm		500 V	500 V	Panel Mount Front	DPST-NC								Pull
Siemens 3SU11507BD881NA0	360° Directional	70 °C	-25 °C	Silver Alloy	Screw Terminal	Digital (Mechanical Switch)	10 A	IP65 IP67 - Dust Tight Water Resistant Waterproof	Joystick 2 - Axis	10000000 Cycles	Joystick	22.3 mm	500000 Cycles	500 V	500 V
Siemens 3SU11501HB201FH0	Off-On On-Off	70 °C	-25 °C		Screw Terminal		10 A	IP66 IP67 IP69K				22.3 mm		500 V	500 V	Panel Mount Front	DPST-NO/NC								Twist
Siemens 3SU11500AB503BA0	Off-Mom	70 °C	-25 °C		Spring Terminal		10 A	IP66 IP67 IP69K	Standard	10000000 Cycles	Button Round	22.3 mm	10000000 Cycles	500 V	500 V	Panel Mount Front	SPST-NO	Blue
Siemens 3SU11502BL603NA0	Off-On	70 °C	-25 °C		Spring Terminal		10 A	IP66 IP67 IP69K	Standard	10000000 Cycles		22.3 mm	1000000 Cycles	500 V	500 V		DPST-NO									49.7 mm	Non-Illuminated	CCC CE CSA EAC UL
Siemens 3SU11500AB103CA0	On-Mom	70 °C	-25 °C		Spring Terminal		10 A	IP66 IP67 IP69K	Standard	10000000 Cycles	Button Round	22.3 mm	10000000 Cycles	500 V	500 V	Panel Mount Front	SPST-NC	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 80.39
