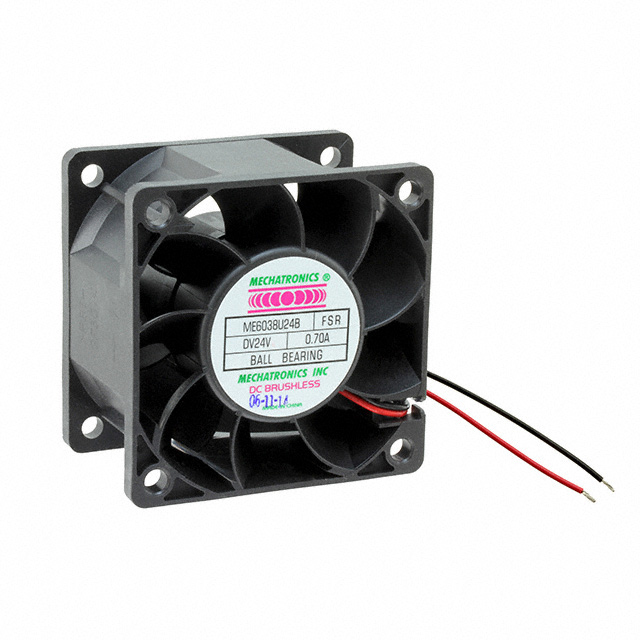

ME6038U24B-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 60X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs Datasheet +2

ME6038U24B-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 60X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ME6038U24B-FSR

Air Flow	1.71 m³/min
Air Flow	61.1 CFM
Approval Agency	UL, cUL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	65 dB
RPM	10000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	351.7 Pa
Static Pressure	1.412 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	104.33 g
Weight	0.23 lb
Width [y]	38 mm

ME6038 Series

Part	Approval Agency	Air Flow	Air Flow	Static Pressure	Static Pressure	RPM	Fan Type	Width [y]	Voltage - Rated	Noise	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Material - Blade	Termination	Features	Bearing Type	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]
Mechatronics Bearing Group ME6038X24B-FSR	cUL UL	57.5 CFM	1.61 m³/min	309.1 Pa	1.241 in H2O	9400 RPM	Tubeaxial	38 mm	24 VDC	63 dB	60 mm	60 mm	104.33 g	0.23 lb	Polybutylene Terephthalate (PBT)	2 Wire Leads	Thermal Overload Protector (TOP)	Ball
Mechatronics Bearing Group ME6038U24B-FSR	cUL UL	61.1 CFM	1.71 m³/min	351.7 Pa	1.412 in H2O	10000 RPM	Tubeaxial	38 mm	24 VDC	65 dB	60 mm	60 mm	104.33 g	0.23 lb	Polybutylene Terephthalate (PBT)	2 Wire Leads	Thermal Overload Protector (TOP)	Ball
Mechatronics Bearing Group ME6038H24B-FSR	cUL UL	47.3 CFM	1.32 m³/min	231.7 Pa	0.93 in H2O	8000 RPM	Tubeaxial	38 mm	24 VDC	58 dB(A)	60 mm	60 mm	104.33 g	0.23 lb	Polybutylene Terephthalate (PBT)	2 Wire Leads	Thermal Overload Protector (TOP)	Ball
Mechatronics Bearing Group ME6038L24B-FSR	cUL UL	35.5 CFM	0.994 m³/min	129.5 Pa	0.52 in H2O	6000 RPM	Tubeaxial	38 mm	24 VDC	48.5 dB(A)	60 mm	60 mm	104.33 g	0.23 lb	Polybutylene Terephthalate (PBT)	2 Wire Leads	Thermal Overload Protector (TOP)	Ball
Mechatronics Bearing Group ME6038E24B-FSR	cUL UL	53.9 CFM	1.51 m³/min	271.5 Pa	1.09 in H2O	8800 RPM	Tubeaxial	38 mm	24 VDC	60 dB(A)	60 mm	60 mm	104.33 g	0.23 lb	Polybutylene Terephthalate (PBT)	2 Wire Leads	Thermal Overload Protector (TOP)	Ball
Mechatronics Bearing Group ME6038L12B2-FSR	cUL UL	35.5 CFM	0.994 m³/min	129.5 Pa	0.52 in H2O	6000 RPM	Tubeaxial	38 mm	12 VDC	48.5 dB(A)	60 mm	60 mm	104.33 g	0.23 lb	Polybutylene Terephthalate (PBT)	3 Wire Leads	Locked Rotor Sensor Thermal Overload Protector (TOP)	Ball	0.5 A	13.2 VDC	7 V
Mechatronics Bearing Group ME6038U24B1-FSR	cUL UL	61.1 CFM	1.71 m³/min	351.7 Pa	1.412 in H2O	10000 RPM	Tubeaxial	38 mm	12 VDC	65 dB	60 mm	60 mm	104.33 g	0.23 lb	Polybutylene Terephthalate (PBT)	3 Wire Leads	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Ball
Mechatronics Bearing Group ME6038X12B1+6-FSR	cUL UL	57.5 CFM	1.61 m³/min	309.1 Pa	1.241 in H2O	9400 RPM	Tubeaxial	38 mm	12 VDC	63 dB	60 mm	60 mm	104.33 g	0.23 lb	Polybutylene Terephthalate (PBT)	4 Wire Leads	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	Ball	1.4 A	13.2 VDC	7 V
Mechatronics Bearing Group ME6038M12B-FSR	cUL UL	41.6 CFM	1.16 mł/min	176.9 Pa	0.71 in H2O	7000 RPM	Tubeaxial	38 mm	12 VDC	53.2 dB(A)	60 mm	60 mm	104.33 g	0.23 lb	Polybutylene Terephthalate (PBT)	2 Wire Leads	Thermal Overload Protector (TOP)	Ball	0.67 A	13.2 VDC	7 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.97
		10	$ 15.24
		25	$ 14.33
		50	$ 13.79
		100	$ 12.70
		250	$ 11.88
		500	$ 11.70

Description

General part information

ME6038 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 61.1 CFM (1.71m³/min) 2 Wire Leads
