368087-1
ActiveTE Connectivity AMP Connectors
090II NON SLD TAB(SQ0.85-1.25)
368087-1
ActiveTE Connectivity AMP Connectors
090II NON SLD TAB(SQ0.85-1.25)
Description
General part information
368087 Series

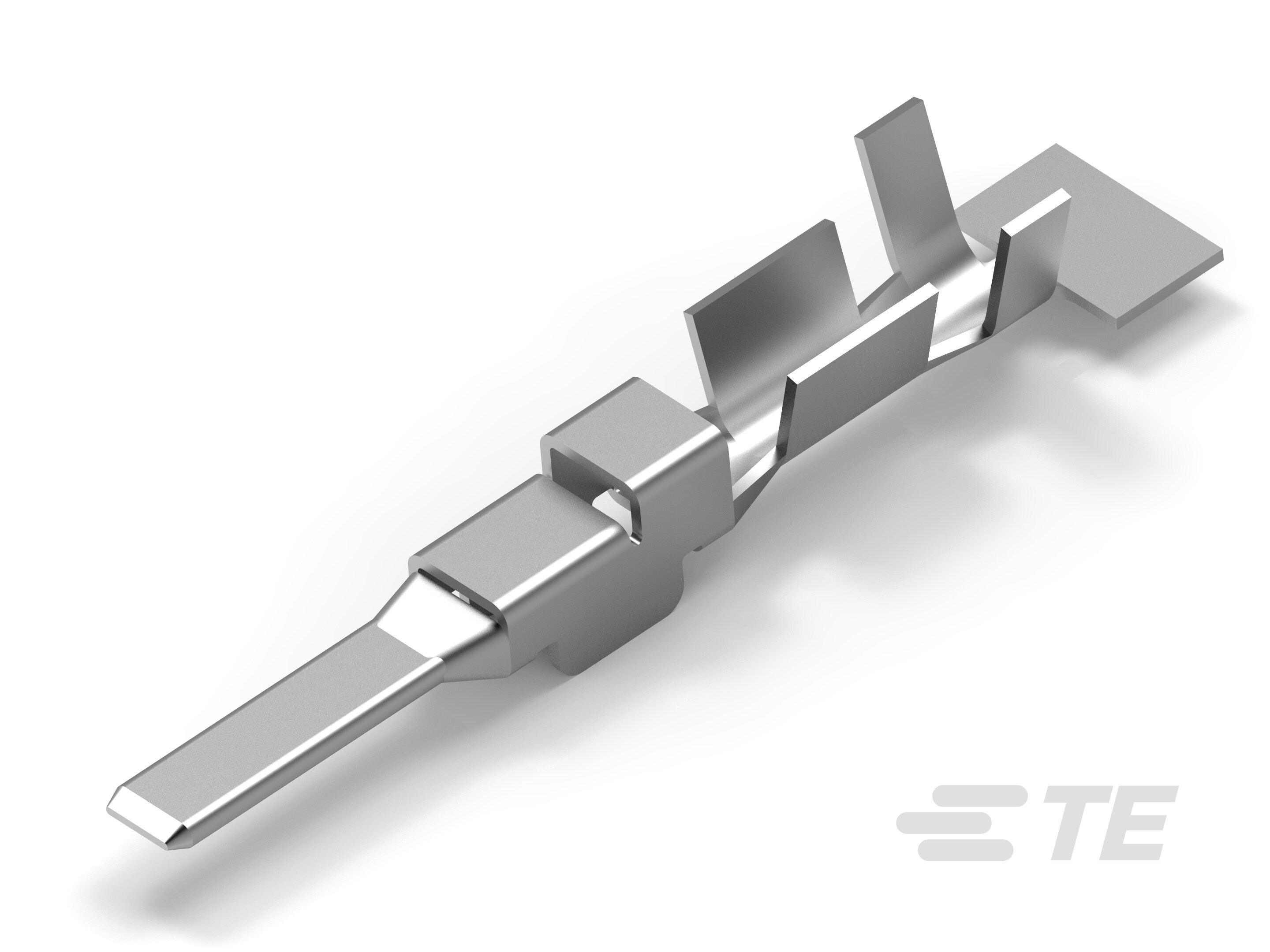

Tab Terminal, 18 – 16 AWG, .85 – 1.25 mm² Wire, 2.3 mm [.09 in] Tab Width, Tin (Sn), .64 mm [.025 in] Tab Thickness, Multilock Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 368087-1 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Tab |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
