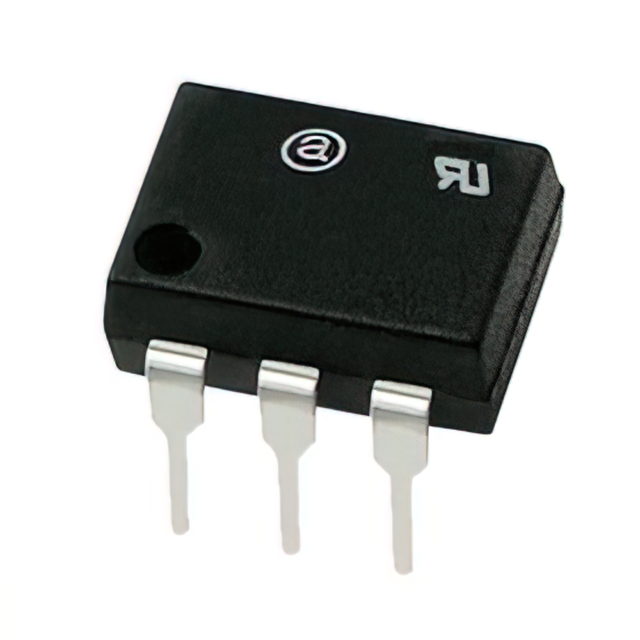

APR211A066000E00G
ActiveMcGill Microwave Systems
RELAY MOS 6 PIN DIP 60V AC/DC
APR211A066000E00G
ActiveMcGill Microwave Systems
RELAY MOS 6 PIN DIP 60V AC/DC
Description
General part information
APR211 Series
Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | APR211A066000E00G |
|---|---|
| Approval Agency | cURus, UR |
| Circuit | SPST-NO (1 Form A) |
| Load Current | 550 mA |
| Mounting Type | Through Hole |
| On-State Resistance (Max) | 1.4 Ohms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | AC, DC |
| Package Length | 0.3 in |
| Package Name | 6-DIP |
| Package Width | 7.62 mm |
| Voltage - Input (DC) Maximum | 1.5 VDC |
| Voltage - Input (DC) Minimum | 0.9 VDC |
| Voltage - Load (Max) | 60 V |
| Voltage - Load (Min) | 0 V |
