TXR40AB00-1408BI
ActiveTE Connectivity Raychem Cable Protection

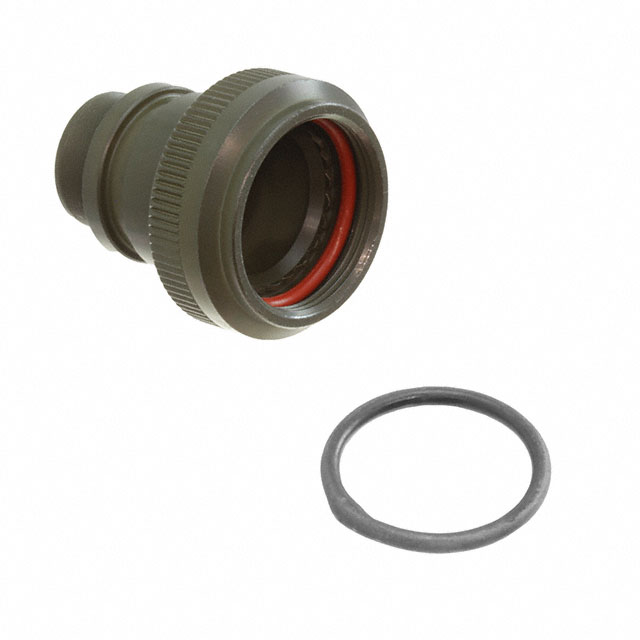

CONN BACKSHELL ADPT SZ15 D M22
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TXR40AB00-1408BI
ActiveTE Connectivity Raychem Cable Protection
CONN BACKSHELL ADPT SZ15 D M22
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TXR40AB00-1408BI |
|---|---|
| Cable Exit | 180 ° |
| Color | Olive Drab |
| Diameter - Outside [diameter] | 1.142 in |
| Diameter - Outside [diameter] | 29 mm |
| Features | Tinel Lock |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV |
| Includes | 1 pcs, 1 pcs, 1 pcs, 1 pcs |
| Ingress Protection | Environment Resistant |
| Material | Aluminum Alloy |
| Plating | Cadmium |
| Shell Size - Insert | 15 |
| Shell Size - Insert | D |
| Shielding | Shielded |
| Type | Backshell, Heat Shrink Adapter |
TXR40AB00 Series
| Part | Thread Size | Type | Plating | Shell Size - Insert | Shell Size - Insert | Material | Cable Exit | Includes | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Features | Ingress Protection | Color | Shielding | For Use With/Related Products | Includes | Shell Size - Insert [custom] | Shell Size - Insert [custom] | Diameter - Outside [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | M15x1 | Backshell Heat Shrink Adapter | Cadmium | B | 11 | Aluminum Alloy | 180 ° | 1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell | 0.827 in | 21 mm | Tinel Lock | Environment Resistant | Olive Drab | Shielded | MIL-DTL-38999 Series III IV | ||||
TE Connectivity Raychem Cable Protection | M31x1 | Backshell Heat Shrink Adapter | Cadmium | G | 21 | Aluminum Alloy | 180 ° | 1.457 " | 37 mm | Tinel Lock | Environment Resistant | Olive Drab | Shielded | MIL-DTL-38999 Series III IV | 1 pcs 1 pcs 1 pcs 1 pcs | ||||
TE Connectivity Raychem Cable Protection | M18x1 | Backshell Heat Shrink Adapter | Cadmium | C | 13 | Aluminum Alloy | 180 ° | 0.965 in | 24.5 mm | Tinel Lock | Environment Resistant | Olive Drab | Shielded | MIL-DTL-38999 Series III IV | 1 pcs 1 pcs 1 pcs 1 pcs | ||||
TE Connectivity Raychem Cable Protection | M28x1 | Backshell Heat Shrink Adapter | Cadmium | F | 19 | Aluminum Alloy | 180 ° | 1.398 in | 35.5 mm | Tinel Lock | Environment Resistant | Olive Drab | Shielded | MIL-DTL-38999 Series III IV | 1 pcs 1 pcs 1 pcs 1 pcs | ||||
TE Connectivity Raychem Cable Protection | M12x1 | Backshell Heat Shrink Adapter | Cadmium | Aluminum Alloy | 180 ° | 0.709 in | 18 mm | Tinel Lock | Environment Resistant | Olive Drab | Shielded | MIL-DTL-38999 Series III IV | 1 pcs 1 pcs 1 pcs 1 pcs | 9 | A | ||||
TE Connectivity Raychem Cable Protection | M37x1 | Backshell Heat Shrink Adapter | Cadmium | J | 25 | Aluminum Alloy | 180 ° | 1.713 " | 43.5 mm | Tinel Lock | Environment Resistant | Olive Drab | Shielded | MIL-DTL-38999 Series III IV | 1 pcs 1 pcs 1 pcs 1 pcs | ||||
TE Connectivity Raychem Cable Protection | Backshell Heat Shrink Adapter | Cadmium | D | 15 | Aluminum Alloy | 180 ° | 1.142 in | Tinel Lock | Environment Resistant | Olive Drab | Shielded | MIL-DTL-38999 Series III IV | 1 pcs 1 pcs 1 pcs 1 pcs | 29 mm | |||||
TE Connectivity Raychem Cable Protection | M37x1 | Backshell Heat Shrink Adapter | Cadmium | J | 25 | Aluminum Alloy | 180 ° | 1.713 " | 43.5 mm | Tinel Lock | Environment Resistant | Olive Drab | Shielded | MIL-DTL-38999 Series III IV | 1 pcs 1 pcs 1 pcs 1 pcs | ||||
TE Connectivity Raychem Cable Protection | M15x1 | Backshell Heat Shrink Adapter | Cadmium | B | 11 | Aluminum Alloy | 180 ° | 1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell | 0.827 in | 21 mm | Tinel Lock | Environment Resistant | Olive Drab | Shielded | MIL-DTL-38999 Series III IV | ||||
TE Connectivity Raychem Cable Protection | M15x1 | Backshell Heat Shrink Adapter | Cadmium | B | 11 | Aluminum Alloy | 180 ° | 1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell | 0.827 in | 21 mm | Tinel Lock | Environment Resistant | Olive Drab | Shielded | MIL-DTL-38999 Series III IV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 143.90 | |
| 10 | $ 122.32 | |||
| 25 | $ 114.67 | |||
| 50 | $ 109.21 | |||
Description
General part information
TXR40AB00 Series
Olive Drab Connector Backshell, Heat Shrink Adapter M22x1 15, D
