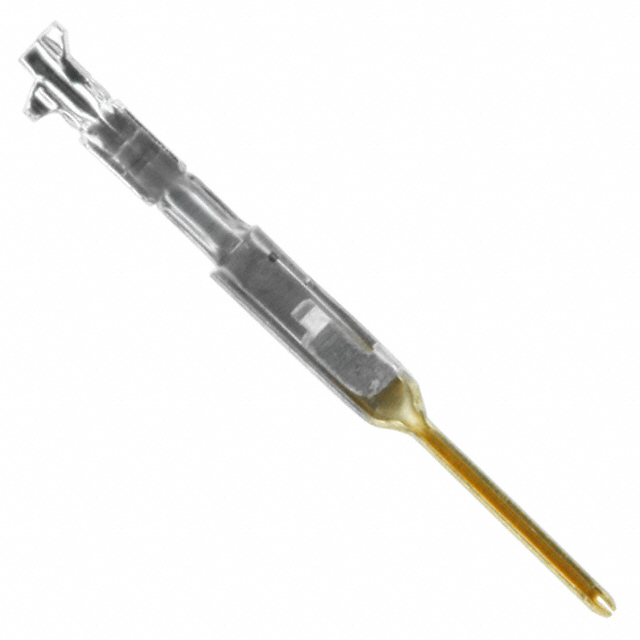

104506-7
ActiveTE Connectivity AMP Connectors
CONN PIN 28-32AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104506-7 | 104506 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Tin, Tin-Lead |
| Contact Finish Thickness | 0.76 Ám | 0.38 - 2.54 µm |
| Contact Finish Thickness | 30 Áin | 15 - 100 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Wire Gauge [Max] | 32 AWG | 32 AWG |
| Wire Gauge [Min] | 27.5 AWG | 27.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.89 | |
| 10 | $ 0.85 | |||
| 25 | $ 0.81 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.70 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.55 | |||
| 2500 | $ 0.51 | |||
104506 Series
CONN PIN 28-32AWG CRIMP GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Pin or Socket | Contact Finish | Contact Termination |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104506-4 | 15 µin | 0.38 µm | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
TE Connectivity AMP Connectors 5-104506-3 | 100 µin | 2.54 µm | 32 AWG | 27.5 AWG | Pin | Tin | Crimp |
TE Connectivity AMP Connectors 104506-7 | 30 Áin | 0.76 Ám | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
TE Connectivity AMP Connectors 5-104506-4 | 15 µin | 0.38 µm | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
TE Connectivity AMP Connectors 5-104506-6 | 30 Áin | 0.76 Ám | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
TE Connectivity AMP Connectors 104506-3 | 100 µin | 2.54 µm | 32 AWG | 27.5 AWG | Pin | Tin-Lead | Crimp |
TE Connectivity AMP Connectors 104506-6 | 30 Áin | 0.76 Ám | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
TE Connectivity AMP Connectors 5-104506-5 | 15 µin | 0.38 µm | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
Description
General part information
104506 Series
Pin Contact Gold 28-32 AWG Crimp
Documents
Technical documentation and resources
