ET60S-000-3-08-D04-L-V1-S

Active

Samtec Inc.

CONN RCPT 28POS PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsET60S Series Other Related Documents 01 Datasheet +2

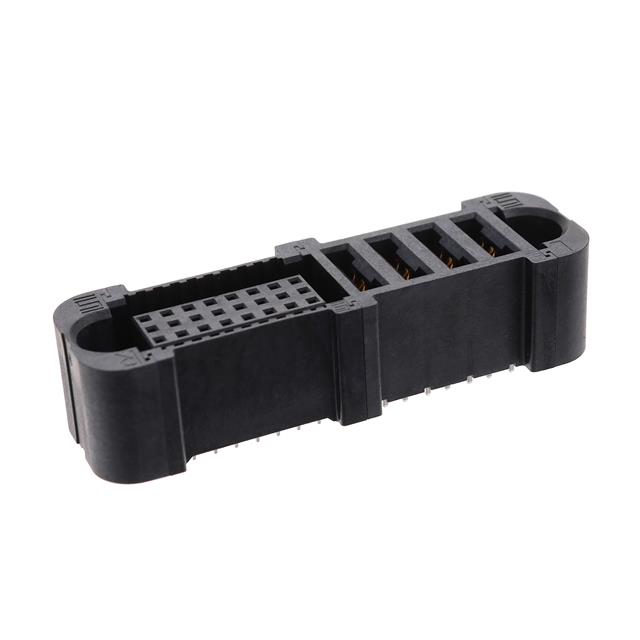

ET60S-000-3-08-D04-L-V1-S

Active

Samtec Inc.

CONN RCPT 28POS PCB

Deep-Dive with AI

DocumentsET60S Series Other Related Documents 01 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ET60S-000-3-08-D04-L-V1-S

Color	Black
Connector Style	EXTreme Ten60Power
Connector Type	Blade Sockets, Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Layout, Typical [custom]	24
Contact Layout, Typical [custom]	4
Features	Mating Guide, Board Guide
Mounting Type	Through Hole
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

ET60S-000 Series

Power to the Board EXTreme Ten60Power 60 Amp Signal/Power Combo

Part	Connector Type	Number of Positions Loaded	Mounting Type	Termination	Features	Connector Style	Color	Voltage Rating	Number of Positions	Contact Finish	Contact Layout, Typical	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Pitch [x]	Pitch [x]
Samtec Inc. ET60S-000-0-00-D06-L-VP-S	Receptacle Female Blade Sockets	All	Through Hole	Press-Fit	Board Guide Mating Guide	EXTreme Ten60Power	Black	250 VDC	6	Gold	6 Power	-40 °C	105 ░C	10 Áin	0.25 Ám
Samtec Inc. ET60S-000-3-08-D04-L-V1-S	Blade Sockets Female Sockets Receptacle	All	Through Hole	Solder	Board Guide Mating Guide	EXTreme Ten60Power	Black	250 VDC	28	Gold		-40 °C	105 ░C	10 Áin	0.25 Ám	3	24	4	2.54 mm	0.1 in
Samtec Inc. ET60S-000-0-00-D06-L-V1-S	Receptacle Female Blade Sockets	All	Through Hole	Solder	Board Guide Mating Guide	EXTreme Ten60Power	Black	250 VDC	6	Gold	6 Power	-40 °C	105 ░C	10 Áin	0.25 Ám
Samtec Inc. ET60S-D04-5-03-000-S-R1-S	Blade Sockets Female Sockets Receptacle	All	Through Hole Right Angle	Solder	Board Guide Mating Guide	EXTreme Ten60Power	Black	280 VAC	19	Gold		-40 °C	105 ░C	30 Áin	0.76 Ám	5	15	4	2.54 mm	0.1 in
Samtec Inc. ET60S-000-5-08-D02-S-R1-S	Blade Sockets Female Sockets Receptacle	All	Through Hole Right Angle	Solder	Board Guide Mating Guide	EXTreme Ten60Power	Black	280 VAC	42	Gold		-40 °C	105 ░C	30 Áin	0.76 Ám	5	40	2	2.54 mm	0.1 in
Samtec Inc. ET60S-A05-5-01-D02-S-R1-S	Blade Sockets Female Sockets Receptacle	All	Through Hole Right Angle	Solder	Board Guide Mating Guide	EXTreme Ten60Power	Black	280 VAC	12	Gold		-40 °C	105 ░C	30 Áin	0.76 Ám	5	5	7	2.54 mm	0.1 in
Samtec Inc. ET60S-000-3-08-D03-L-R1-S	Blade Sockets Female Sockets Receptacle	All	Through Hole Right Angle	Solder	Board Guide Mating Guide	EXTreme Ten60Power	Black	250 VDC	27	Gold		-40 °C	105 ░C	10 Áin	0.25 Ám	3	24	3	2.54 mm	0.1 in
Samtec Inc. ET60S-A04-0-00-A04-S-VP-S	Receptacle Female Blade Sockets	All	Through Hole	Press-Fit	Board Guide Mating Guide	EXTreme Ten60Power	Black	280 VAC	8	Gold	8 Power	-40 °C	105 ░C	30 Áin	0.76 Ám	1
Samtec Inc. ET60S-D02-5-01-D02-S-R1-S	Blade Sockets Female Sockets Receptacle	All	Through Hole Right Angle	Solder	Board Guide Mating Guide	EXTreme Ten60Power	Black	280 VAC	9	Gold		-40 °C	105 ░C	30 Áin	0.76 Ám	5	5	4	2.54 mm	0.1 in
Samtec Inc. ET60S-000-3-08-D03-S-V1-S	Blade Sockets Female Sockets Receptacle	All	Through Hole	Solder	Board Guide Mating Guide	EXTreme Ten60Power	Black	250 VDC	27	Gold		-40 °C	105 ░C	30 Áin	0.76 Ám	3	24	3	2.54 mm	0.1 in
