2385533-2

2385533-2

Active
TE Connectivity AMP Connectors

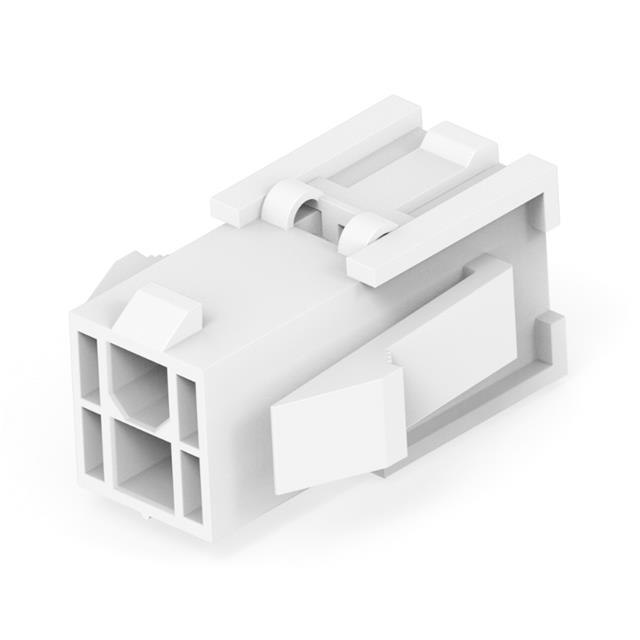

2P DR PLUG VAL-U-LOK PM GWT PLUS TPA

Find alt
2385533-2

2385533-2

Active
TE Connectivity AMP Connectors

2P DR PLUG VAL-U-LOK PM GWT PLUS TPA

Find alt

Description

General part information

2385533 Series

2 Position, Plug, Housing, Wire-to-Panel, 4.2 mm [.165 in] Centerline, 2 Row, Wire & Cable, Power & Signal, Panel Mount, VAL-U-LOK PLUS

Technical Specifications

Parameters and characteristics for this part

Specification2385533-2
ColorNatural
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLocking Ramp
FeaturesTerminal Position Lock (TPA)
Insulation MaterialPolyamide (PA66), Nylon 6/6
Mounting TypePanel Mount, Snap-In
Number of Positions2
Number of Rows2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Pitch0.165 in
Row Spacing0.165 in
