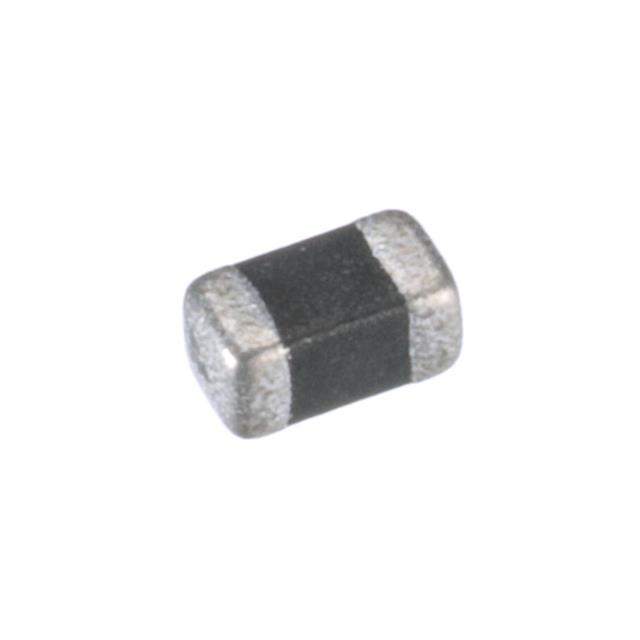

MLVHV0806V300

Active

Eaton - Electronics Division

VARISTOR ESD 300VAC SMD 0806

Search across all available documentation for this part.

Active

Eaton - Electronics Division

VARISTOR ESD 300VAC SMD 0806

Technical Specifications

Parameters and characteristics commom to parts in this series

VARISTOR ESD 175VAC SMD 0806

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Maximum DC Volts [Max]	Varistor Voltage (Min) [Min]	Varistor Voltage (Max) [Max]	Varistor Voltage (Typ)	Number of Circuits	Capacitance @ Frequency	Maximum AC Volts [Max]	Current - Surge	Maximum AC Volts
Eaton - Electronics Division MLVHV0806V175	-40 °C	125 °C	0806 (2016 Metric)	Surface Mount, MLCV	225 V	243 V	297 V	270 V	1	100 pF	175 V	100 A
Eaton - Electronics Division MLVHV0806V150	-40 °C	125 °C	0806 (2016 Metric)	Surface Mount, MLCV	200 V	216 V	264 V	240 V	1	140 pF	150 V	160 A
Eaton - Electronics Division MLVHV0806V300	-40 °C	125 °C	0806 (2016 Metric)	Surface Mount, MLCV	385 V	423 V	517 V	470 V	1	15 pF		10 A	300 V
Eaton - Electronics Division MLVHV0806V250	-40 °C	125 °C	0806 (2016 Metric)	Surface Mount, MLCV	320 V	351 V	429 V	390 V	1	50 pF	250 V	50 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 V 10 A Varistor 1 Circuit Surface Mount, MLCV 0806 (2016 Metric)
