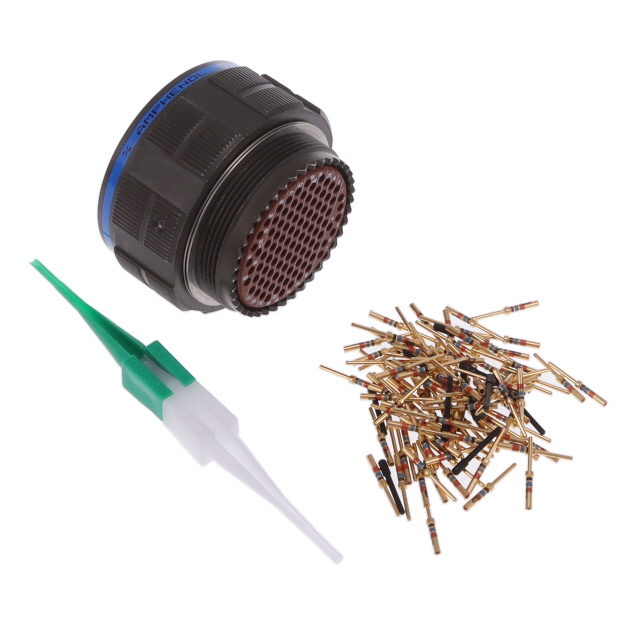

D38999/26WH35PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 100POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WH35PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 100POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WH35PN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	100
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	23
Shell Size, MIL	H
Shielding	Shielded
Termination	Crimp

D38999/26WH Series

Part	Shielding	Number of Positions	Orientation	Qualification	Shell Material	Termination	Primary Material	Contact Material	Mounting Type	Grade	Features	Contact Finish - Mating	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, MIL	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Color	Shell Finish	Ingress Protection	Housing Color	Insert Material	Contact Size	Contact Type	Contact Shape	Type	Note	Contact Size	Backshell Material, Plating
Amphenol Aerospace Operations D38999/26WH21PN	Shielded	21	N	MIL-DTL-38999 Series III	Aluminum	Crimp	Metal	Copper Alloy	Free Hanging (In-Line)	Military	Coupling Nut	Gold	Aerospace Aviation Marine Military	-65 ░C	347 °F	H	1.27 µm	50 µin	Male Pins Plug	21	23	Olive Drab	Olive Drab Cadmium	Environment Resistant
Amphenol Aerospace Operations D38999/26WH53BB	Shielded	53	B	MIL-DTL-38999 Series III	Aluminum		Metal		Free Hanging (In-Line)	Military	Coupling Nut Self Locking			-65 ░C	347 °F	H			Plug Housing	23	53		Cadmium	Environment Resistant	Olive Drab	Thermoplastic	20	Crimp	Circular	For Female Sockets	Contacts Not Included
Amphenol Aerospace Operations D38999/26WH35PN	Shielded	100	N	MIL-DTL-38999 Series III	Aluminum	Crimp	Metal	Copper Alloy	Free Hanging (In-Line)	Military	Coupling Nut	Gold	Aerospace Aviation Marine Military	-65 ░C	347 °F	H	1.27 µm	50 µin	Male Pins Plug	23	35	Olive Drab	Olive Drab Cadmium	Environment Resistant
Amphenol Aerospace Operations D38999/26WH55JA-LC	Shielded	55 positions	A	MIL-DTL-38999 Series III	Aluminum				Free Hanging (In-Line)	Military	Coupling Nut Self Locking			-65 ░C	347 °F	H			Plug Housing	23	55		Cadmium	Environment Resistant	Olive Drab		20	Crimp	Circular	For Female Sockets	Contacts Not Included
Amphenol Aerospace Operations D38999/26WH35SN	Shielded	100	N	MIL-DTL-38999 Series III	Aluminum	Crimp	Metal	Copper Alloy	Free Hanging (In-Line)	Military	Coupling Nut	Gold	Aerospace Aviation Marine Military	-65 ░C	347 °F	H	1.27 µm	50 µin	Female Sockets Plug	23	35	Olive Drab	Olive Drab Cadmium	Environment Resistant
Amphenol Aerospace Operations D38999/26WH21JA-LC	Shielded	21	A	MIL-DTL-38999 Series III	Aluminum				Free Hanging (In-Line)	Military	Coupling Nut Self Locking			-65 ░C	347 °F	H			Plug Housing	21	23		Cadmium	Environment Resistant	Olive Drab		16	Crimp	Circular	For Female Sockets	Contacts Not Included
Amphenol Aerospace Operations D38999/26WH35HN-LC	Shielded	100	N	MIL-DTL-38999 Series III	Aluminum				Free Hanging (In-Line)	Military	Coupling Nut Self Locking			-65 ░C	347 °F	H			Plug Housing	23	35		Cadmium	Environment Resistant	Olive Drab			Crimp	Circular	For Male Pins	Contacts Not Included	22D
Amphenol Aerospace Operations D38999/26WH35SN-U	Unshielded	100	N	MIL-DTL-38999 Series III	Aluminum	Crimp	Metal	Copper Alloy	Free Hanging (In-Line)	Military	Backshell Coupling Nut Self Locking	Gold	Aviation Marine Military	-65 ░C	347 °F	H	1.27 µm	50 µin	Female Sockets Plug	23	35	Olive Drab	Olive Drab Cadmium	Environment Resistant									Metal
Amphenol Aerospace Operations D38999/26WH21SA-LC	Shielded	21	A	MIL-DTL-38999 Series III	Aluminum				Free Hanging (In-Line)	Military	Coupling Nut Self Locking			-65 ░C	347 °F	H			Plug Housing	21	23		Cadmium	Environment Resistant	Olive Drab		16	Crimp	Circular	For Female Sockets	Contacts Not Included
Amphenol Aerospace Operations D38999/26WH35HA-LC	Shielded	100	A	MIL-DTL-38999 Series III	Aluminum				Free Hanging (In-Line)	Military	Coupling Nut Self Locking			-65 ░C	347 °F	H			Plug Housing	23	35		Cadmium	Environment Resistant	Olive Drab			Crimp	Circular	For Male Pins	Contacts Not Included	22D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 304.58
		10	$ 239.15
		25	$ 218.53

Description

General part information

D38999/26WH Series

100 Position Circular Connector Plug, Male Pins Crimp
