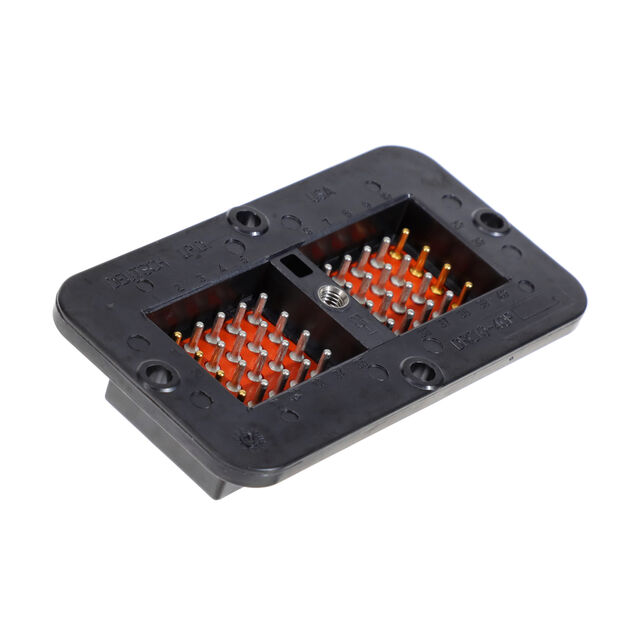

DRC10-40P

Active

TE Connectivity Raychem Cable Protection

40P RECP ASM

Deep-Dive with AI

Search across all available documentation for this part.

DRC10-40P

Active

TE Connectivity Raychem Cable Protection

40P RECP ASM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DRC10-40P

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	3.94 mm
Contact Length - Post	0.155 "
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Push-Pull
Features	Sealed
Insulation Color	Black
Insulation Height	0.855 in
Insulation Height	21.72 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	40
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.49 mm
Pitch - Mating	0.216 "
Row Spacing - Mating	0.216 in
Row Spacing - Mating	5.49 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	250 VAC

DRC10 Series

Part	Connector Type	Material Flammability Rating	Number of Positions Loaded	Voltage Rating	Mounting Type	Contact Shape	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Contact Material	Fastening Type	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Features	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Shrouding	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Material	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]
TE Connectivity Raychem Cable Protection DRC10-40P	Receptacle	UL94 V-0	All	250 VAC	Panel Mount Through Hole	Circular	Tin	Solder	5.49 mm	0.216 "	Copper Alloy	Push-Pull	40	0.216 in	5.49 mm	Sealed	13 A	0.855 in	21.72 mm	3.94 mm	0.155 "	Shrouded - 4 Wall	Male Pin	-55 °C	125 °C	Black
TE Connectivity Raychem Cable Protection DRC10-24PA-A004	Header		All	250 VAC	Panel Mount Through Hole	Circular	Tin	Solder	5.46 mm	0.215 in		Push-Pull	24	0.216 in	5.49 mm		13 A	0.894 "	22.71 mm	4.83 mm	0.19 in	Shrouded - 4 Wall	Male Pin	-55 °C	125 °C	Black	Plastic	Board to Cable/Wire
TE Connectivity Raychem Cable Protection DRC10-24PA	Header		All	250 VAC	Panel Mount Through Hole	Circular	Tin	Solder	5.46 mm	0.215 in		Push-Pull	24	0.216 in	5.49 mm		13 A	0.894 "	22.71 mm	4.83 mm	0.19 in	Shrouded - 4 Wall	Male Pin	-55 °C	125 °C	Black	Plastic	Board to Cable/Wire
TE Connectivity Raychem Cable Protection DRC10-40P-A004	Header	UL94 V-0	All	250 VAC	Panel Mount Through Hole	Circular		Solder	5.46 mm	0.215 in		Push-Pull	40				13 A	0.855 in	21.72 mm	4.83 mm	0.19 in	Shrouded - 4 Wall	Male Pin	-55 °C	125 °C	Black	Plastic	Board to Cable/Wire	5.48 mm	0.216 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.04
		10	$ 27.81

Description

General part information

DRC10 Series

Connector Header Panel Mount, Through Hole 40 position 0.216" (5.49mm)

Documents

Technical documentation and resources

No documents available
