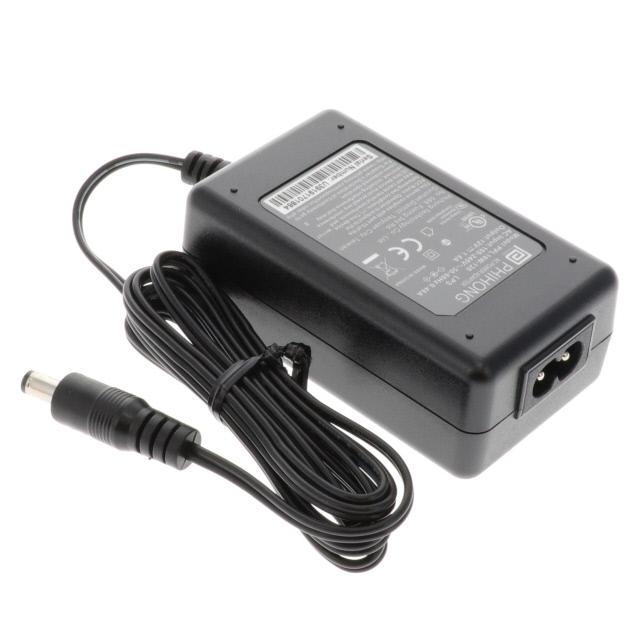

PPL18W-120

Active

Phihong USA

AC/DC DESKTOP ADAPTER 12V 19W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPL18W-120

Active

Phihong USA

AC/DC DESKTOP ADAPTER 12V 19W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPL18W-120

Applications	ITE (Commercial)
Approval Agency	IEC, cULus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.6 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	10 mm
Polarization	Positive Center
Power (Watts)	19 W
Region Utilized	International
Size / Dimension [x]	88.5 mm
Size / Dimension [x]	3.48 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

PPL18W Series

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Input Connector	Voltage - Output	Form	Operating Temperature [Max]	Approval Agency	No Load Power Consumption [Max]	Applications	Cord Length	Cord Length	Output Connector [z]	Output Connector [diameter]	Output Connector	Current - Output (Max) [Max]	Region Utilized	Efficiency	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Polarization	No Load Power Consumption
Phihong USA PPL18W-240	1.97 "	50 mm	1.34 in	88.5 mm	3.48 in	34 mm	19 W	IEC 320-C8	24 V	Desktop (Class II)	40 °C	cULus IEC	75 mW	ITE (Commercial)	1.5 m	59 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	800 mA	International	CoC Tier 2 Level VI	62368-1	90 VAC	264 VAC	Cord	Positive Center
Phihong USA PPL18W-120	1.97 "	50 mm	1.34 in	88.5 mm	3.48 in	34 mm	19 W	IEC 320-C8	12 V	Desktop (Class II)	40 °C	cULus IEC	75 mW	ITE (Commercial)	1.5 m	59 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	1.6 A	International	CoC Tier 2 Level VI	62368-1	90 VAC	264 VAC	Cord	Positive Center
Phihong USA PPL18W-090	1.97 "	50 mm	1.34 in	88.5 mm	3.48 in	34 mm	20 W	IEC 320-C8	9 V	Desktop (Class II)	40 °C	cULus IEC	75 mW	ITE (Commercial)	1.5 m	59 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	2.2 A	International	CoC Tier 2 Level VI	62368-1	90 VAC	264 VAC	Cord	Positive Center
Phihong USA PPL18W-150	1.97 "	50 mm	1.34 in	88.5 mm	3.48 in	34 mm	20 W	IEC 320-C8	15 VDC	Desktop (Class II)	40 °C	cULus IEC	75 mW	ITE (Commercial)	1.5 m	59 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	1.3 A	International	CoC Tier 2 Level VI	62368-1	90 VAC	264 VAC	Cord	Positive Center
Phihong USA PPL18W-050L6	1.97 "	50 mm	1.34 in	88.5 mm	3.48 in	34 mm	15 W	IEC 320-C8	5 V	Desktop (Class II)	40 °C	cULus IEC		ITE (Commercial)	1.5 m	59 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	3 A	International	Level VI	62368-1	90 VAC	264 VAC	Cord	Positive Center	100 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.96
		5	$ 13.58
		10	$ 12.83
		25	$ 12.07
		50	$ 11.32
		100	$ 10.56
		250	$ 10.19
		500	$ 10.03

Description

General part information

PPL18W Series

12V 19 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
