T353E106J016AT7301

Active

KEMET

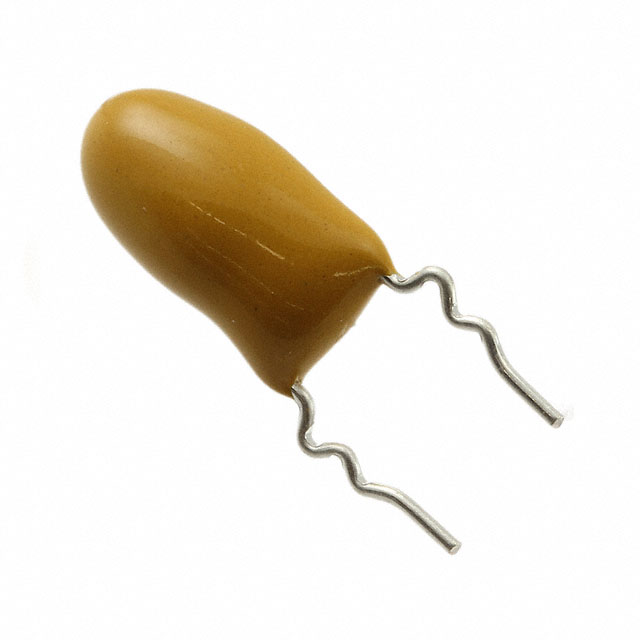

CAP TANT 10UF 5% 16V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 10UF 5% 16V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T353E106J016AT7301

Capacitance	10 µF
ESR (Equivalent Series Resistance)	3.2 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	0.461 in
Height - Seated (Max) [Max] [z]	11.7 mm
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	E
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.217 "
Size / Dimension [diameter]	5.5 mm
Tolerance	5 %
Type	Conformal Coated
Voltage - Rated	16 V

Part	Manufacturer Size Code	Tolerance	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lead Spacing	Lead Spacing	Features	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	ESR (Equivalent Series Resistance)
KEMET T353E106J016AT7301	E	5 %	Through Hole	Radial	-55 °C	125 °C	16 V	5.08 mm	0.2 in	General Purpose	Conformal Coated	0.217 "	5.5 mm	0.461 in	11.7 mm	10 µF	3.2 Ohm
KEMET T353E225M050AT	E	20 %	Through Hole	Radial	-55 °C	125 °C	50 VDC	5.08 mm	0.2 in	General Purpose	Conformal Coated	0.217 "	5.5 mm	0.461 in	11.7 mm	2.2 µF	3.5 Ohm
KEMET T353E106K025AS	E	10 %	Through Hole	Radial	-55 °C	125 °C	25 VDC	5.08 mm	0.2 in	General Purpose	Conformal Coated	0.217 "	5.5 mm	0.461 in	11.7 mm	10 µF	2.5 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 2.80

General part information

10 µF Conformal Coated Tantalum Capacitors 16 V Radial 3.2Ohm @ 100kHz

Technical documentation and resources
