H8600VBBBEN577
ActiveBULGIN LIMITED

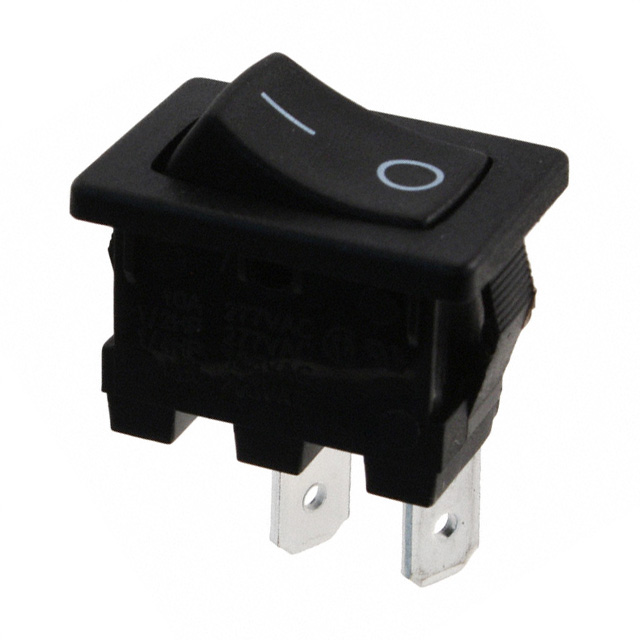

SWITCH ROCKER SPST 16A 250V
Deep-Dive with AI
Search across all available documentation for this part.
H8600VBBBEN577
ActiveBULGIN LIMITED
SWITCH ROCKER SPST 16A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H8600VBBBEN577 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 19.3 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.70 | |
| 10 | $ 4.06 | |||
| 25 | $ 3.83 | |||
| 50 | $ 3.66 | |||
| 100 | $ 3.50 | |||
| 250 | $ 3.30 | |||
| 500 | $ 3.16 | |||
| 1000 | $ 3.02 | |||
Description
General part information
H8600VB Series
Rocker Switch SPST 16A (AC) 250 V Panel Mount, Snap-In
Documents
Technical documentation and resources
