60177-2
ActiveTE Connectivity AMP Connectors
.090 PIN REC AMVAR 21-16 TPPHB ROHS COMPLIANT: YES
60177-2
ActiveTE Connectivity AMP Connectors
.090 PIN REC AMVAR 21-16 TPPHB ROHS COMPLIANT: YES
Description
General part information
60177 Series

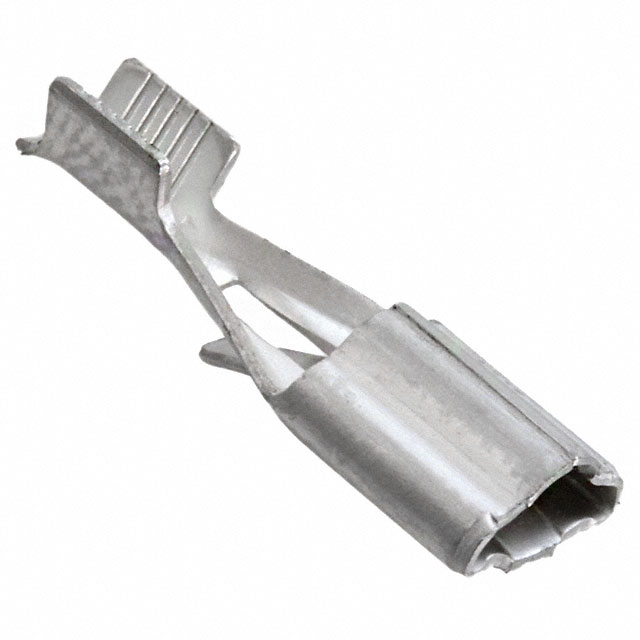

Receptacle, 2.29 mm [.09 in] Pin Diameter, 21 – 16 AWG, .41 – 1.31 mm² Wire, 810 – 2582 CMA, Open Barrel, Tin Plating, AMPLIVAR
Technical Specifications
Parameters and characteristics for this part
| Specification | 60177-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Features | Serrated Termination |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall | 0.66 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.24 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 21 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
