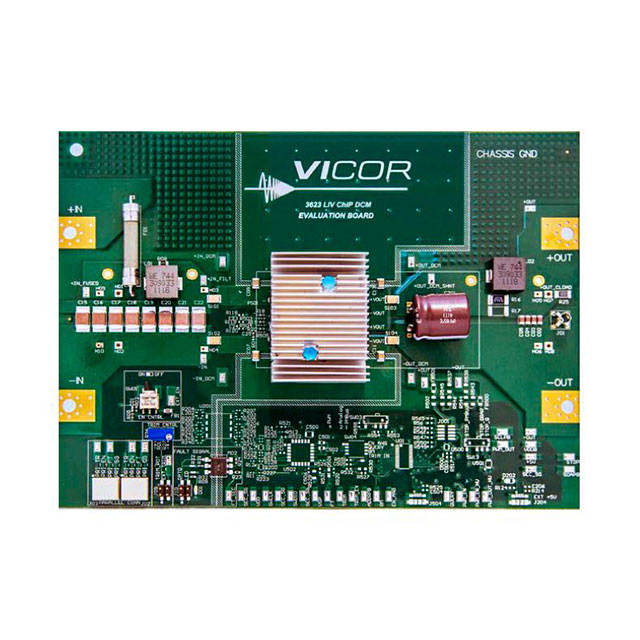

Specification	DCM3623E36G31C2T00

Board Type	Fully Populated
Contents	Board
Current - Output	11.43 A
Isolated Output Count	1
Main Purpose	DC/DC, Step Down
Output Type	Isolated
Power - Output	320 W
Regulator Topology	Buck
Supplied Contents	Board(s)
Total Output Count	1
Utilized IC / Part	DCM3623x36G31C2yzz
Voltage - Input (Maximum)	36 V
Voltage - Input (Minimum)	18 V
Voltage - Output	28 V

DCM3623 Series

...

Part	Number of Outputs	Power (Watts)	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Applications	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Isolation	Voltage - Input (Max)	Current - Output (Max)	Voltage - Input (Min)	Type	Package / Case	Efficiency	Features	Voltage - Output 1	Total Output Count	Output Type	Isolated Output Count	Board Type	Power - Output	Supplied Contents	Utilized IC / Part	Current - Output	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Main Purpose	Contents	Regulator Topology	Voltage - Output	Approval Agency
Vicor Corporation DCM3623T36G53C2T00	1	320.2 W	0.9 in	1.52 in	0.29 in	ITE (Commercial)	Through Hole	125 °C	-40 °C	2.25 kV	36 V	6.67 A	18 V	Isolated Module	9-DIP Module	93 %	OCP OTP OVP SCP UVLO	48 V
Vicor Corporation DCM3623E36G31C2T00																			1	Isolated	1	Fully Populated	320 W	Board(s)	DCM3623x36G31C2yzz	11.43 A	18 V	36 V	DC/DC Step Down	Board	Buck	28 V
Vicor Corporation DCM3623T75X1380T00	1	80 W	0.9 in	1.52 in	0.28 in	ITE (Commercial)	Through Hole	125 °C	-40 °C	2.25 kV	75 V	6.7 A	9 V	Isolated Module	9-DIP Module	90.4 %	OCP OTP OVP SCP UVLO	12 V															CE
Vicor Corporation DCM3623T75H31C2M00	1	320 W	0.9 in	1.52 in	0.29 in	ITE (Commercial)	Through Hole	125 °C	-55 °C	2.25 kV	75 V	11.43 A	36 V	Isolated Module	9-DIP Module	92.4 %	OCP OTP OVP SCP UVLO	28 V
Vicor Corporation DCM3623T50T0680T00	1	80 W	0.9 in	1.52 in	0.29 in	ITE (Commercial)	Through Hole	125 °C	-40 °C	2.25 kV	50 V p-p	16 A	9 V	Isolated Module	9-DIP Module	88 %	OCP OTP OVP Remote On/Off SCP UVLO	5 V
Vicor Corporation DCM3623TA5N06A2T00	1	120 W	0.9 in	1.52 in	0.28 in	ITE (Commercial)	Through Hole	125 °C	-40 °C	3 kV	154 V	24 A	43 V	Isolated Module	9-DIP Module	89.4 %	OCP OTP OVP SCP UVLO	5 V
Vicor Corporation DCM3623T50M26C2M00	1	321.6 W	0.9 in	1.52 in	0.29 in	ITE (Commercial)	Through Hole	125 °C	-55 °C	2.25 kV	50 V p-p	13.4 A	16 V	Isolated Module	9-DIP Module	91.8 %	OCP OTP OVP SCP UVLO	24 V
Vicor Corporation MDCD270P050M250A40																			1	Isolated	1		250 W		MDCM270P050M250A40	50 A	160 V	420 V	DC/DC Step Down	Board	Buck	5 VDC
Vicor Corporation DCM3623T50M04A2M00	1	120.1 W	0.9 in	1.52 in	0.29 in	ITE (Commercial)	Through Hole	125 °C	-55 °C	2.25 kV	50 V p-p	36.4 A	16 V	Isolated Module	9-DIP Module	89.2 %	OCP OTP OVP SCP UVLO	3.3 V
Vicor Corporation DCM3623TA5N53B4T00	1	240 W	0.9 in	1.52 in	0.28 in	ITE (Commercial)	Through Hole	125 °C	-40 °C	3 kV	154 V	5 A	43 V	Isolated Module	9-DIP Module	90.7 %	OCP OTP OVP SCP UVLO	48 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

DCM3623E36G31C2T00 | Datasheet
